> >EV EVL-EVID-FM4.2 2-WAY 100V LINE 30W 8 OHM RECESSED MOUNTED IN-WALL SPEAKER PAIR WHITE
New EV EVL-EVID-FM4.2 2-WAY 100V LINE 30W 8 OHM RECESSED MOUNTED IN-WALL SPEAKER PAIR WHITE View larger

ELECTROVOICE

EV EVL-EVID-FM4.2 2-WAY 100V LINE 30W 8 OHM RECESSED MOUNTED IN-WALL SPEAKER PAIR WHITE

ELEEVID-FM4.2

EVL-EVID-FM4.2

New product

Balcatta: 0
Geebung: 0

EVL-EVID-FM4.2 Electro-Voice 4-Inch Two-Way Flush-Mount Speaker Pair - White

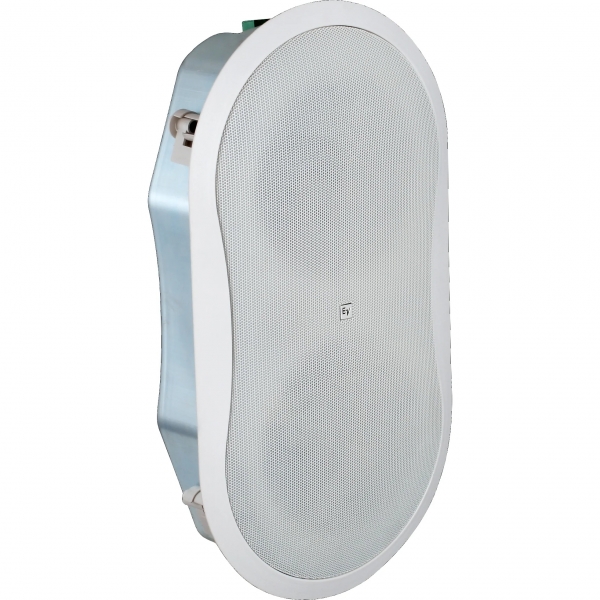

The Electro-Voice EVID FM4.2 is a compact two-way flush-mounted loudspeaker with a 4-inch low-frequency driver, 4-inch passive radiator and 1-inch titanium-coated dome tweeter for music and voice reproduction. Its internal transformer supports 70 V and 100 V distributed speaker systems, with selectable 100 V taps of 3.75, 7.5, 15 and 30 W, plus an 8-ohm bypass mode for low-impedance operation.

The fully sealed enclosure has a depth of 96.5 mm for recessed installation in walls and ceiling cavities. It features a heat-resistant ABS baffle, zinc-plated steel backcan and semi-gloss white powder-coated steel grille. The EVID FM4.2 is supplied as a pair for commercial audio and public address installations.

Key Features

  • Compact enclosure with low-frequency extension
  • Front-accessible tap selection
  • Pass-through terminals for onward wiring to additional loudspeakers
  • Broad symmetrical dispersion for speech and background music coverage
  • Integrated woofer and tweeter protection circuitry
  • Colour White
  • Impedance 8 ohm
  • Sensitivity 87 dB
  • Warranty 60 Months
  • PRODUCT TYPE IN-WALL SPEAKER
  • Brand EV
  • Config 2-WAY
  • Power Type 70V/100V LINE
  • Mount Type RECESSED MOUNTED
  • Peak Power (W) 200W
  • Weight (kg) 6.8
  • HF Driver Size 1"
  • LF Driver Size 4"
  • Enclosure METAL ENCLOSURE
  • Max SPL (dB) 110 DB
  • Hertz 70-20000HZ
  • Max Wattage 200W
  • Max 100V Tap (W) 30W
  • 100V Taps List 3.7W;7.5W;15W;30W
  • Max 70V Tap (W) 30W
  • Unit Dimensions (mm) 349.9H x 188.3W x 96.5D
  • Pair PAIR
