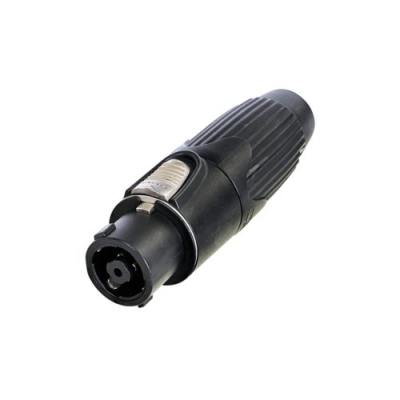

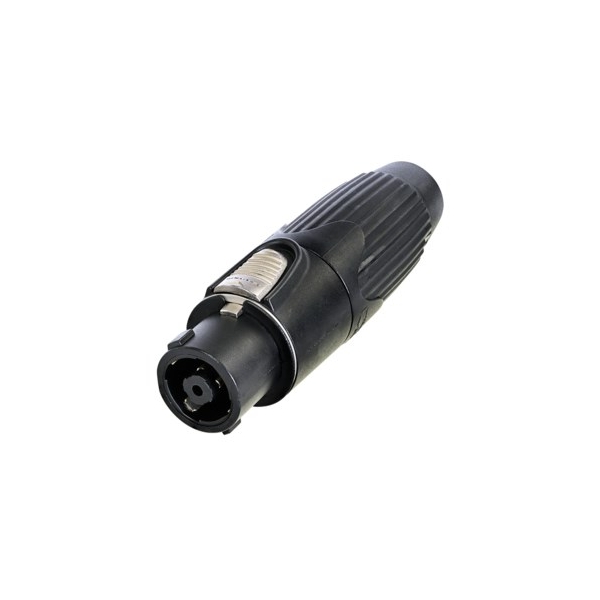

> >>NEUTRIK NLT8FXX-BAG SPEAKON 8 POLE FEMALE CABLE CONNECTOR, BLACK WITH SILVER CONTACTS
NEUTRIK NLT8FXX-BAG SPEAKON 8 POLE FEMALE CABLE CONNECTOR, BLACK WITH SILVER CONTACTS View larger

NEUTRIK

NEUTRIK NLT8FXX-BAG SPEAKON 8 POLE FEMALE CABLE CONNECTOR, BLACK WITH SILVER CONTACTS

NEUNLT8FXX-BAG

NU-NLT8FXX-BAG

New product

Balcatta: 0
Geebung: 0

NEUTRIK NLT8FXX-BAG speakON STXX 8 Pole Female Cable Connector Black Metal Housing

The NEUTRIK NLT8FXX-BAG is a high-quality 8 pole female speakON cable connector designed for heavy duty amplifier-to-loudspeaker cabling in professional touring and live sound systems. Engineered for 8-20 mm cable O.D. and rated 30 A rms continuous per contact at 250 V ac, it features an extremely robust all-metal zinc diecast shell with KTL coating plus silver plated copper alloy contacts to ensure low-loss power transfer and long-term reliability on the road.

Ideal for multi-way loudspeaker lines, active speaker arrays, and high-current stage installations, it is IEC 61984 certified and accepted as a component for equipment designed to IEC 62368-1, and the precise Quick Lock latch with chuck type strain relief delivers secure, vibration-resistant termination, making it suitable for demanding touring, rental, and fixed-install audio environments.

Key Features

  • 8 pole female speakON cable connector rated 30 A rms per contact and 250 V ac for professional amplifier to speaker connections
  • Rugged zinc diecast metal housing with KTL coating and silver plated copper alloy contacts for durable high-conductivity performance
  • Quick Lock latch system with chuck type strain relief and ≥220 N cable retention for secure stage-ready cabling
  • IEC 61984 certified and accepted for IEC 62368-1 equipment with <2 mΩ contact resistance and 1.5 kVac dielectric strength
  • Solder contacts for 1.5-6 mm² (up to AWG 10) conductors with UL 94 V-0 insert and IP50 protection in mated condition
  • PRODUCT TYPE CONNECTORS
  • COLOR BLACK
