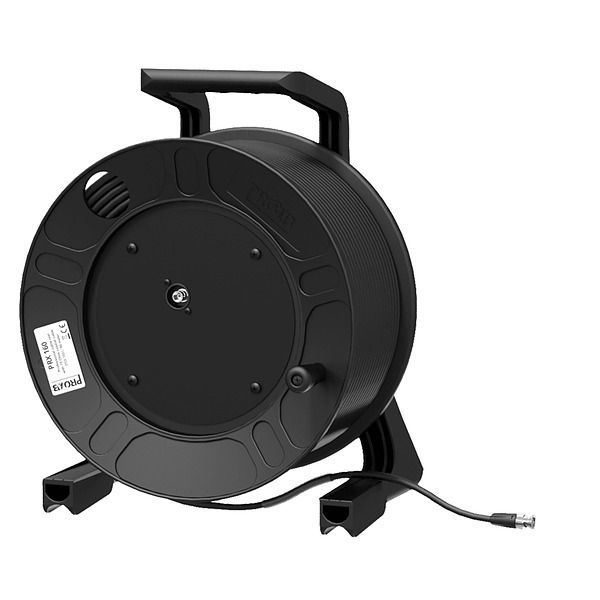

Prime Series SDI Video Cable Reel - 50 Metre

The PRX160 is a HighFlex™ 75Ω coaxial video cable (PCX160) assembled on a lightweight, extremely strong and impact resistant reel (CDM310). The cable is solid but flexible constructed featuring a stranded high purity copper conductor (19 AWG), which is surrounded by a foamed polyethylene isolator.

The shielding consists of a dual braiding which offers a high immunity against noise and interference caused by external devices, while offering a high flexibility and reliability for mobile applications. The cable end is terminated using a male BNC connector while chassis side is fitted with a female BNC connector.

It can be used for a wide variety of mobile applications such as analogue video interconnections as well has HDTV digital SDI and HD-SDI.

Features

• 19 AWG stranded conductors
• Highflex™ solid & flexible jacket
• Double braided shielding
• 7 mm (Ø) outer diameter
• HD-SDI up to 85 metre
• 3G-SDI up to 58 metre
• Oxygen free copper
• 60 mm transparent shrink sleeve
