Foil Shield Multicore Cable 2 Pair

EUROCABLE SSA02C

New product

Foil Shield Multicore Cable 2 Pair

More details

C.C.A. Productions Osborne Park 9242 8511 www.ccaproductions.com.au
Soundtown Osborne Park 9242 8055 www.soundtown.com.au

SSA features for each pair an aluminium/mylar foil shield with drain wire inside the foil for easier installation.

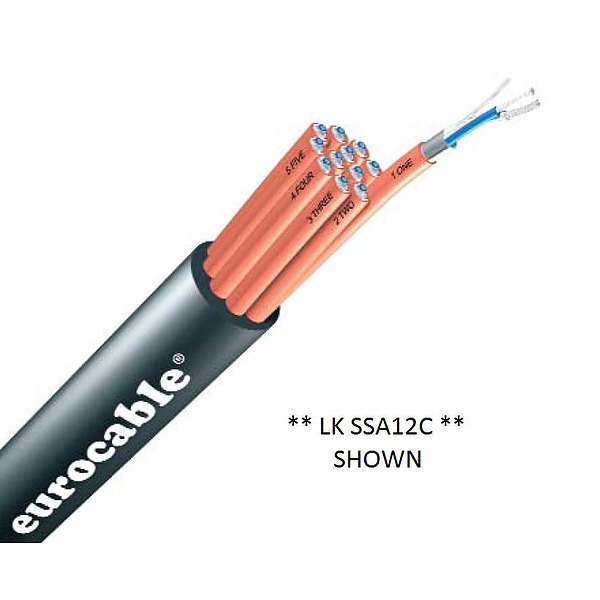

All pairs are individually shielded, twisted and identified by numbers and letters.

Available from 2 to 64 pairs.

Features

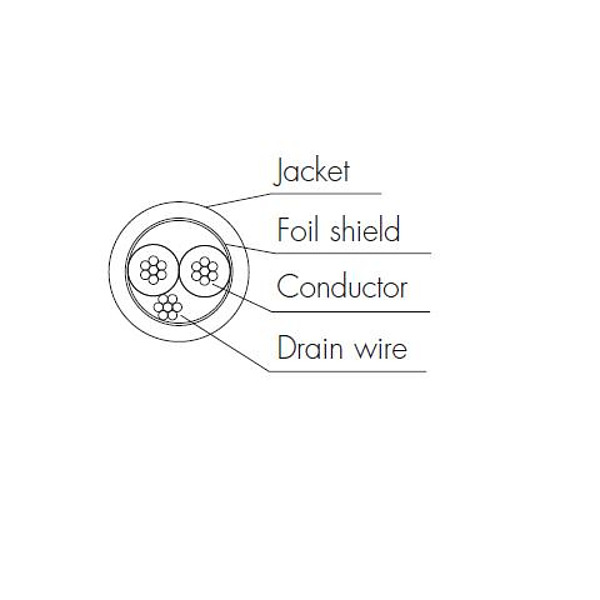

•   Each pair consists of two insulated twisted conductors and drain wire, aluminium/mylar foil shield and jacket.


Available per metre (minimum of 10 metres then increments of 5 metres)

  • Colour Black
  • Conductor Size 0.22 mm2
  • Outside Diameter 7.2 mm
  • Roll Length 500 Metre
  • Shield Material Aluminium/Mylar foil Shield plus 24 AWG drain wire
  • Weight 9.00 Kg per 100 metre
