Copper Shield Multicore Cable 2 Pair

EUROCABLE SS02C

New product

Copper Shield Multicore Cable 2 Pair

More details

Mega Music Myaree Myaree 9330 2777 www.megamusiconline.com.au
Advanced Production Engineering Claremont 0487 465 597 www.apengineering.com.au
Soundtown Osborne Park 9242 8055 www.soundtown.com.au
SS series key features are high flexibility and long flex life. Thanks to these properties SS is one of the most popular cables for critical outdoor use applications.

The external jacket in extra flexible PVC ensures anti-treading and anti-abrasion features.

The XLPE conductor insulation, featuring a low dielectric-constant for low capacitance, is particularly resistant to high temperatures thus avoiding jacket shrinkage when soldering the conductor.

This particular construction is ideal for continuous winding and unwinding, its use with HD series cable reels is although recommended.

All pairs are individually shielded, twisted and identified by numbers and letters printed on the internal yellow jackets.

Available from 2 to 48 pairs.

Features

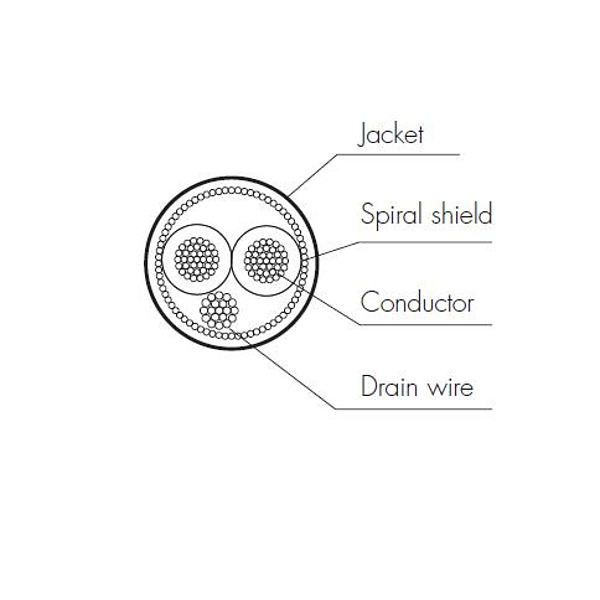

• Each pair consists of two insulated twisted conductors and drain wire enclosed within a high-density spiral copper shield.


Available per metre (minimum of 10 metres then increments of 5 metres)
  • Colour Black
  • Conductor Size 0.22 mm2
  • Outside Diameter 8.0 mm
  • Roll Length 200 metre
  • Shield Material Spiral shield plus 24 AWG tinned copper drain wire
  • Weight 10.30 Kg per 100 metre
