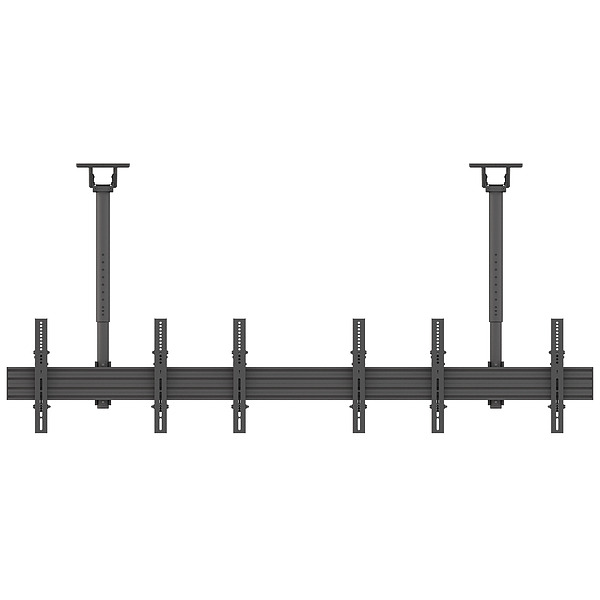

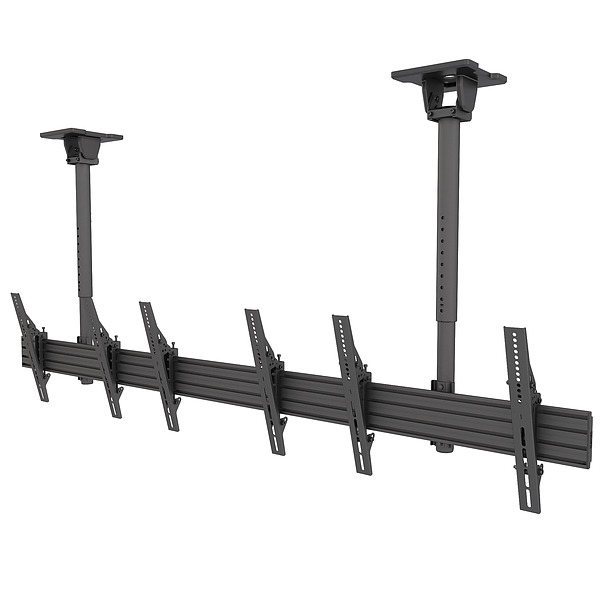

Menu Board Ceiling Mount System

Designed for commercial applications where wall space is limited, the MB Series telescoping ceiling mount system offers a flexible solution for displaying menu boards and other digital signage.

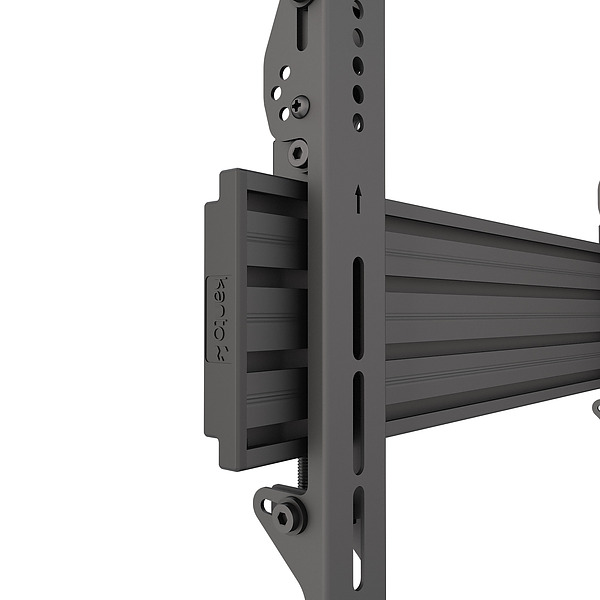

Its modular rails allow two to four screens to be placed adjacent to one another in portrait or landscape orientation, while precision leveling screws ensure perfect alignment. Achieve proper line of sight with easy height adjustments and four discrete tilt settings.

This all in one mounting solution includes everything you need for wood and concrete installations and can swing up to 90° to accommodate sloped ceilings and support beams.

Features

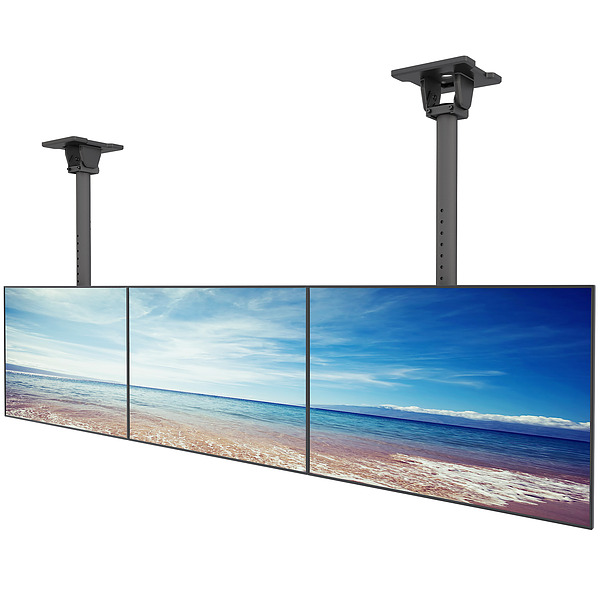

• Modular rail system accommodates three screens measuring 40” to 60” each
• Supports TVs up to 30 kg each
• Accommodates VESA sizes from 75x75 to 600x400

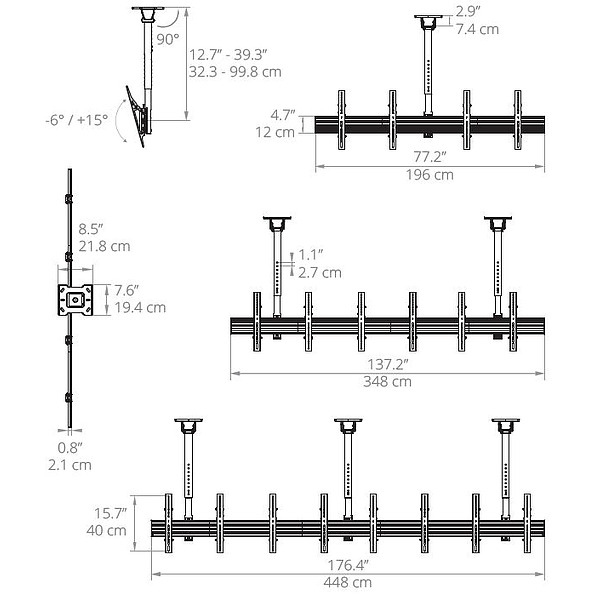

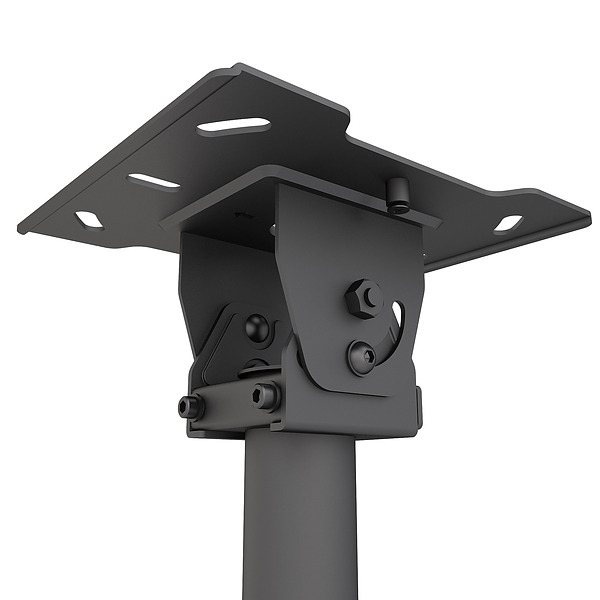

• Ceiling plate swings up to 90° to accommodate sloped ceilings
• Provides 5°, 10° or 15° of forward tilt and 6° of backward tilt
• Short pole provides 32.2 - 43.1 cm of height adjustment
• Long pole provides 32.2 - 43.1 cm of height adjustment
• Accommodates portrait and landscape orientations

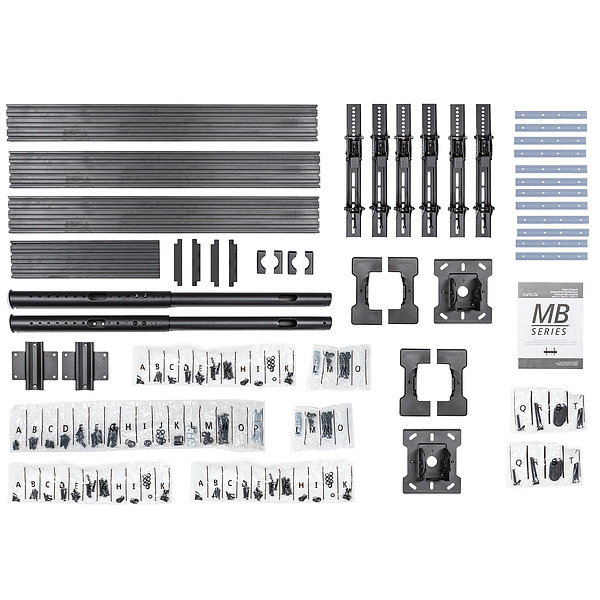

• Includes manual and all mounting hardware for wood stud and concrete installation
