12" Two Way Full Range Loudspeaker - Indoor

View larger

EV 12" TWO WAY FULL RANGE LOUDSPEAKER

Product Code: ELEEVF-1122S/126-BLKL

Supplier SKU: EVF-1122S/126-BLKL

Condition: New product

More details

Balcatta: 0

Geebung: 0

More info

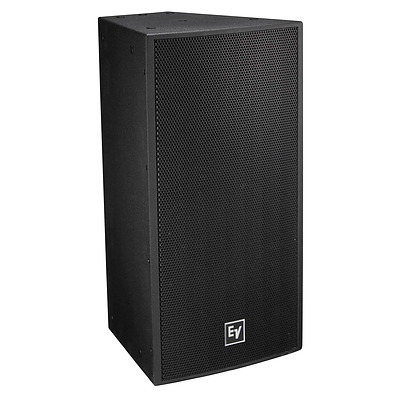

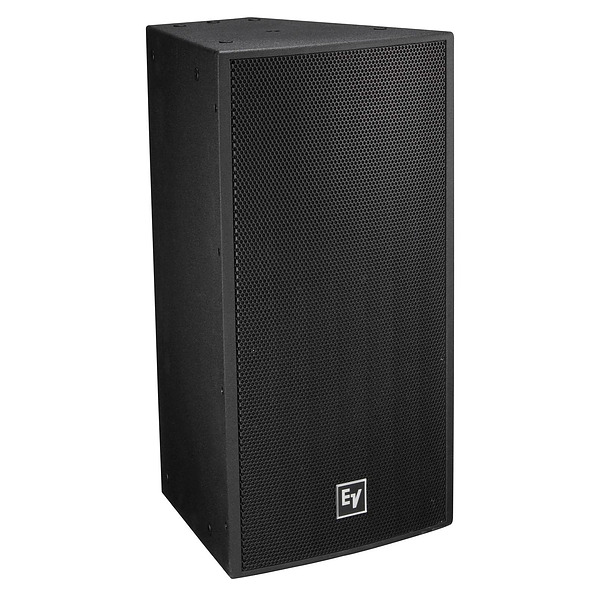

The Electro-Voice® EVF-1122S/126 is a high power, 2 way loudspeaker system that can be used in a variety of applications where high quality sound reinforcement is required in a compact, lightweight package.

The EVF-1122S/126 utilizes the ND2B, a high output 2” titanium compression driver, coupled to a Constant Directivity™ 120° x 60° waveguide. The SMX2121 12” woofer used FEA optimization for motor, suspension, and electrical design for very low distortion, high efficiency, and maximum intelligibility at high SPL levels. The crossover uses steep 24 dB/octave slopes with equalization for very smooth response in vocal range, linear off-axis response, and a protection circuit for long term reliability.

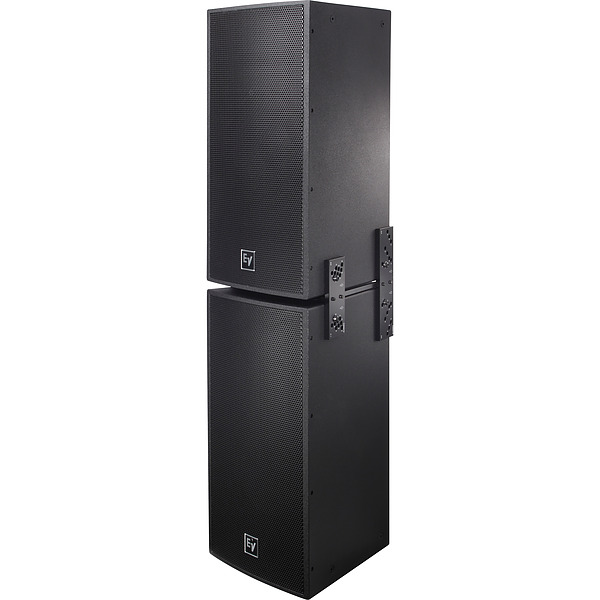

The EVF-1122S/126 features make it ideal for many fixed install applications. The trapezoidal enclosure is constructed out of weather resistant birch, and coated with EVCoatTM for maximum protection from the elements. The unique acoustic and rigging design allows for vertical and horizontal clusters to be built using any combination of loudspeakers from the entire EVF & EVH Series, with 7 horn patterns to choose from and an assortment of Low Frequency and subwoofer loudspeakers, it gives you the tools to maximize flexibility of system design, no matter what the application and budget. The innovative input panel provides choice of phoenix style connector (included in all standard models) or the ability to add; a dual NL4 type connector cover plate or gland nut cover plate (for weatherizing applications). An externally accessible jumper selects passive or active operation.

An available 100 Volt transformer kit simply mounts to the input panel for use in distributed systems. All these features give you the flexibility to do a large range of venues with fewer items in inventory and quickly support your customer’s requirements.

Also available in 60° x 60°, 90° x 40°, 90° x 60°, 90° x 90°

Features

• ND2B 2” (51mm) Diaphragm, 1.4” (36mm) Exit Pure Titanium Compression Driver

• SMX2121 12” (305mm) LF Transducer with Fully Symmetric Drive

• Advanced 4th Order Crossover Network with HF Protection

• Coverage Pattern: 120° x 60° Constant DirectivityTM 12” Rotatable Waveguide

• (22) M10 Threaded Suspension Points
