> >>NEUTRIK NAHDMI-W-B HDMI RECEPTACLE BLACK
New NEUTRIK NAHDMI-W-B HDMI RECEPTACLE BLACK View larger

NEUTRIK

NEUTRIK NAHDMI-W-B HDMI RECEPTACLE BLACK

NEUNAHDMI-W-B

NU-NAHDMI-W-B

New product

Balcatta: 0
Geebung: 0

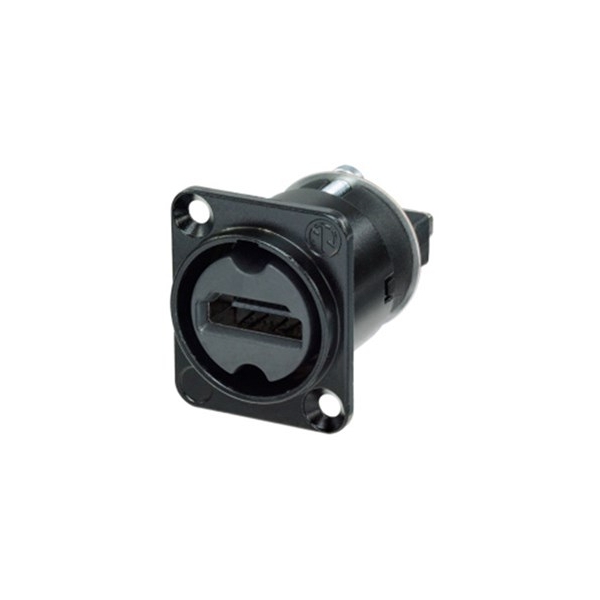

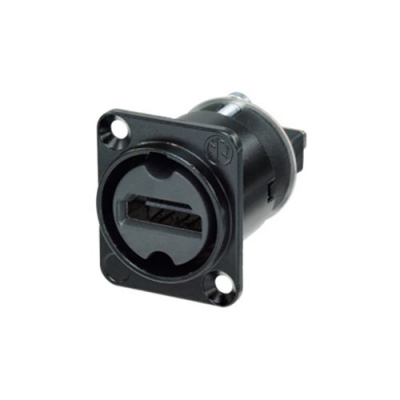

NEUTRIK NAHDMI-W-B HDMI Feedthrough Adapter D Shape Housing - HDMI 2.0 Black

The NEUTRIK NAHDMI-W-B is a high-quality HDMI feedthrough adapter designed for professional AV panel and rack builds that need a clean, reliable HDMI pass-through connection. Featuring a 19 pole HDMI receptacle on both ends, it uses a shielded 360 degree system with gold plated bronze contacts and a rugged zinc diecast shell with black chromium plating to ensure strong signal integrity and excellent EMI protection.

Ideal for transmitting digital TV and PC video formats including high definition video in studios, stages, control rooms, and installed networks, it complies with HDMI 2.0 and delivers long service life with over 1000 mating cycles. With a push pull locking interface, standard D shape mounting for front or rear installation up to 2 mm panel thickness, UL 94 V-0 flammability, and IP65 ingress protection in mated condition when used with NKHDMI-* and an SCDP-* sealing gasket, it is built for dependable performance in demanding professional environments.

Key Features

  • HDMI feedthrough adapter with 19 pole HDMI receptacle at both ends for seamless panel pass through
  • Shielded 360 degree design for high noise immunity and improved EMI protection
  • Universally accepted standard D shape housing with front or rear mounting up to 2 mm panel thickness
  • HDMI 2.0 compliant with UL 94 V-0 flammability and -25 C to +85 C operating range
  • IP65 in mated condition with NKHDMI-* and SCDP-* sealing gasket plus removable screen to chassis grounding
  • PRODUCT TYPE CONNECTORS
  • COLOR BLACK
