> >>>TOA HY-CW1W CEILING BRACKET FOR HX5 WHITE
New TOA HY-CW1W CEILING BRACKET FOR HX5 WHITE View larger

TOA

TOA HY-CW1W CEILING BRACKET FOR HX5 WHITE

TOAHYCW1W

HYCW1W 487183

New product

Balcatta: 0
Geebung: 0

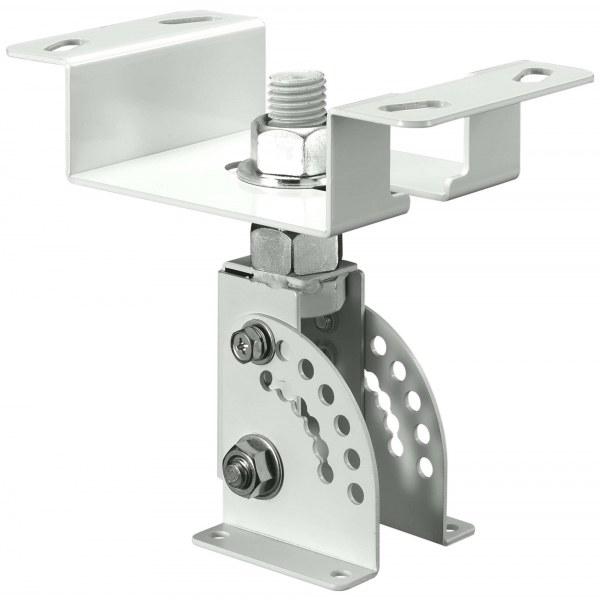

HY-CW1W TOA Ceiling Mounting Bracket for HX-5 Series - White

The HY-CW1W is a TOA ceiling mounting bracket designed exclusively to mount the HX-5 series speaker system to a ceiling. Designed for indoor use, it has a white semi-gloss painted steel plate finish for protected ceiling-mounted speaker installations.

The bracket allows the speaker to rotate 360 degrees horizontally and supports vertical tilt adjustment up to 82.5 degrees when suspended horizontally. When suspended vertically, tilt depends on the speaker directivity mode, with up to 67.5 degrees for 60 degrees mode or 75 degrees for 15 degrees, 30 degrees or 45 degrees modes.

Key Features

  • Dedicated ceiling bracket for HX-5 series speaker installations.
  • Enables full horizontal rotation to help aim speaker coverage after mounting.
  • Supports wide vertical tilt adjustment for horizontally suspended speakers.
  • Accommodates directivity-mode-dependent tilt when suspended vertically.
  • White semi-gloss finish suits clean indoor ceiling installations.
  • PRODUCT TYPE SPEAKER BRACKET
  • COLOR WHITE
