> >>NEUTRIK NA3MDF MALE TO FEMALE D FLANGE CHASSIS MOUNT
New NEUTRIK NA3MDF MALE TO FEMALE D FLANGE CHASSIS MOUNT View larger

NEUTRIK

NEUTRIK NA3MDF MALE TO FEMALE D FLANGE CHASSIS MOUNT

NEUNA3MDF

NU-NA3MDF

New product

Balcatta: 0
Geebung: 0

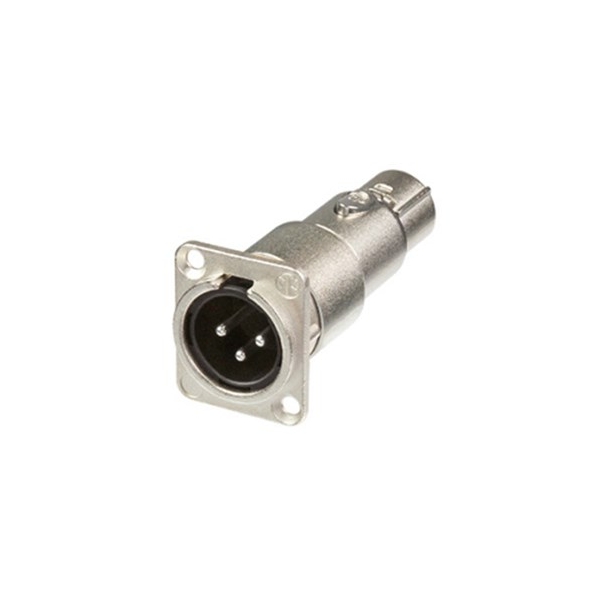

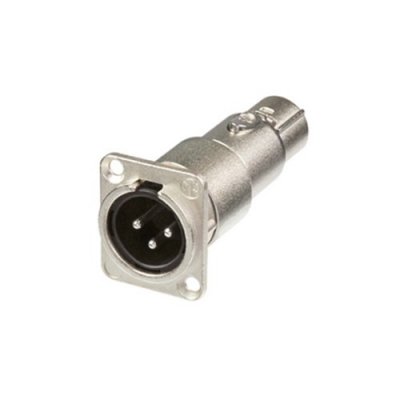

NEUTRIK NA3MDF XLR Male To Female Feedthrough Adapter D Flange Chassis Mount

The NEUTRIK NA3MDF is a high-quality XLR male-to-female feedthrough adapter designed for clean, professional panel mounting in audio, broadcast, and industrial signal routing applications. Built in a standard D-size chassis format, it features a nickel-plated zinc diecast shell with a rugged polyamide insert and precision silver-plated contacts to ensure low contact resistance, strong shielding continuity, and dependable long-life connectivity.

Ideal for stage boxes, wall plates, patch panels, rack I O panels, and custom enclosures, it complies with IEC 61076-2-103 and offers IP40 protection for reliable use in professional indoor environments. With latch-lock retention, solder contacts for secure termination, and high electrical performance including 16 A per contact and 1.5 kVdc dielectric strength, it delivers a robust, service-friendly interface for demanding installations and touring-grade builds.

Key Features

  • XLR male to female feedthrough adapter for panel mount in D-size chassis cut-outs
  • Nickel-plated zinc diecast housing with durable polyamide PA 6.6 30 percent GR insert
  • 2 µm silver over 2 µm nickel contact plating for low resistance and reliable signal transfer
  • IEC 61076-2-103 compliant with IP40 protection and IEC 68-2-20 solderability compliance
  • 16 A per contact rated current with >1000 mating cycles and solder wiring up to 2.5 mm² 14 AWG
  • PRODUCT TYPE CONNECTORS
  • COLOR SILVER
