> >>>ELECTRO VOICE EVL-EKX-12P EKX 12" 2-WAY POWERED 1500W WALL/POLE MOUNTED 2-WAY LOUDSPEAKER BLACK
12" Two-Way Powered Loudspeaker - 375 Watt View larger

ELECTRO VOICE

ELECTRO VOICE EVL-EKX-12P EKX 12" 2-WAY POWERED 1500W WALL/POLE MOUNTED 2-WAY LOUDSPEAKER BLACK

ELEEKX-12P

EVL-EKX-12P

New product

EV 12" TWO-WAY POWERED LOUDSPEAKER - 375 WATT

More details

Balcatta: 0
Geebung: 0

ELEEKX-12P Electro-Voice EKX-12P 12-Inch Two-Way Powered Loudspeaker - 1500 W Black

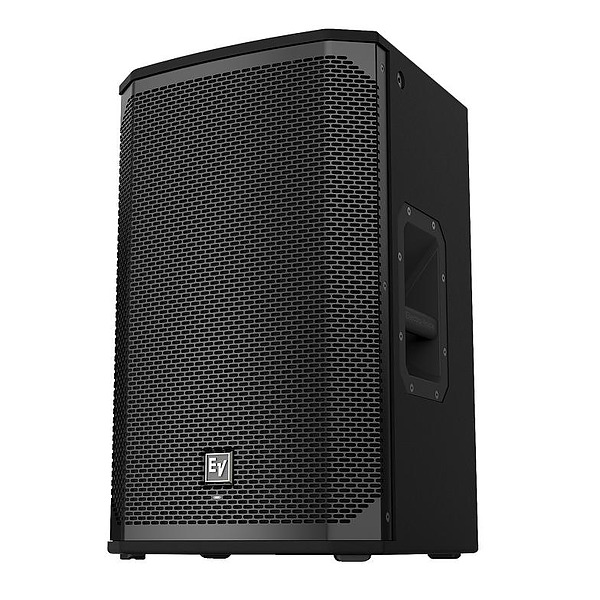

The Electro-Voice EKX-12P is a 12-inch two-way powered full-range loudspeaker combining a high-efficiency 1500 W Class-D amplifier with integrated QuickSmartDSP. An EVS-12M 12-inch woofer and DH-1M 1-inch titanium compression driver deliver up to 132 dB SPL, while the SST waveguide provides consistent 90 degrees x 60 degrees coverage.

Built for portable and installed sound applications, the compact 15 mm plywood enclosure uses internal bracing and an EVCoat finish. Eight M10 suspension points and aluminium pole mounts support flexible deployment, while sensor-controlled thermal management regulates the variable-speed fan for dependable operation in demanding conditions.

Key Features

  • Application presets speed up setup for music, live performance, speech and club playback
  • Five store-and-recall user presets make recurring system configurations easier to reproduce
  • Three-band EQ enables practical onboard tonal adjustment for different programme material
  • System-match crossovers simplify configuring full-range and subwoofer systems
  • Limiter-status monitoring and input meters provide clear feedback when setting gain levels
  • Colour Black
  • Coverage (H x V) 90° x 60°
  • Dimensions (H x W x D) 607 x 375 x 356 mm
  • Frequency Response 50 Hz - 20 kHz (-10 dB):
  • Material 15 mm plywood with EVCoat
  • Maximum SPL 132 dB
  • Power Rating 1500 Watt
  • Suspension Points 8 x M10 threaded mounting points
  • Warranty 5 Years
  • Weight 18.8 kg
  • PRODUCT TYPE 2-WAY LOUDSPEAKER
  • COLOR BLACK
  • Brand ELECTRO VOICE
  • Config 2-WAY
  • Driver Size 12"
  • Power Type POWERED
  • Mount Type WALL/POLE MOUNTED
  • Dispersion Angle 90H X 60V
  • Input Connector (1) Stereo RCA input; (2) XLR/TRS combo jack; (1) XLR link output
  • Weight (kg) 18.8 KG
  • LF Driver Size 12"
  • Enclosure 15MM PLYWOOD
  • Max SPL (dB) 132 DB
  • Hertz 50-20000HZ (-10dB)
  • Max Wattage 1500W
  • Unit Dimensions (mm) 607H x 375W x 356D
  • Series EKX
