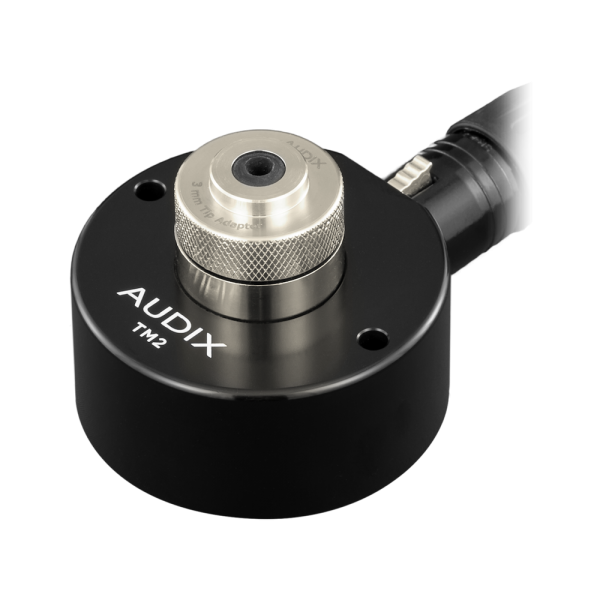

AUDIX TM2 INTEGRATED EAR SIMULATOR COUPLER WITH INTEGRATED PREAMP INCLUDES IEC ANSI CALIBRATOR ADAPTERS FLXFIT

Product Code: ADX-TM2

Supplier SKU: AUD-TM-2

Condition: New product

Balcatta: 0

Geebung: 0

More info
Specifications
Download

AUD-TM-2 Audix TM2 Integrated Ear Simulator Coupler with Integrated Preamp IEC ANSI Calibrator Adapters FLXFIT S M - Kit

The AUD-TM-2 is a high-quality integrated ear-simulator coupler designed for professional IEM test and measurement, in-ear monitor troubleshooting, and repeatable performance verification. Measuring 57 mm x 41 mm and weighing 190 g, it features precision-machined components with nickel and anodized finish plus an integrated pre-polarized condenser transducer to deliver consistent 20 Hz - 20 kHz results for reliable acoustic analysis.

Ideal for monitor engineers, manufacturers, and QA workflows, it connects via 3-pin XLRm and runs on 24 - 48 V phantom power for easy integration with audio interfaces and measurement software. Supplied with a calibration file and IEC and ANSI calibrator adaptors, it supports dependable IEM checks, production quality control, and pre-show verification in live sound, broadcast, studio, and house of worship environments.

Key Features

Integrated ear-simulator coupler with pre-polarized condenser transducer for IEM test and measurement
Frequency response 20 Hz - 20 kHz with nominal sensitivity 6.5 mV-Pa at 1 kHz and unit calibration data
High headroom performance with 130 dB maximum SPL 68 dB SNR and 104 dB dynamic range
24 - 48 V phantom powered 200 ohm output with correct polarity pin 2 hot on XLRm

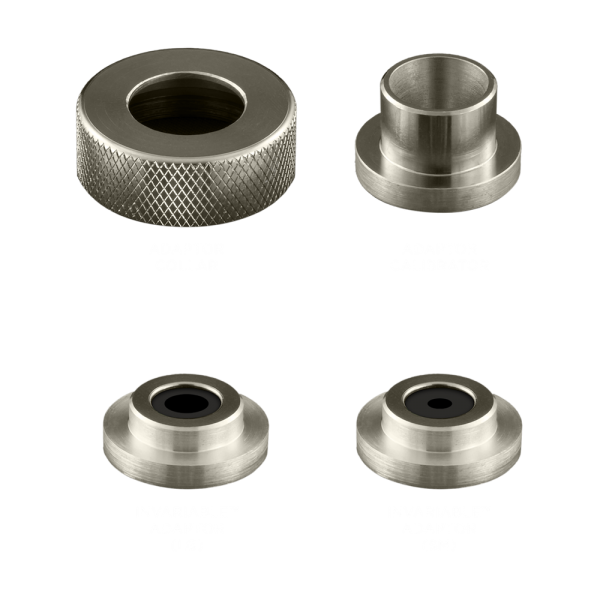

Includes protective carrying case plus four adaptors including IEC ANSI calibrator adaptors and Audix FLXFIT S M and custom adaptors for fast repeatable seals
