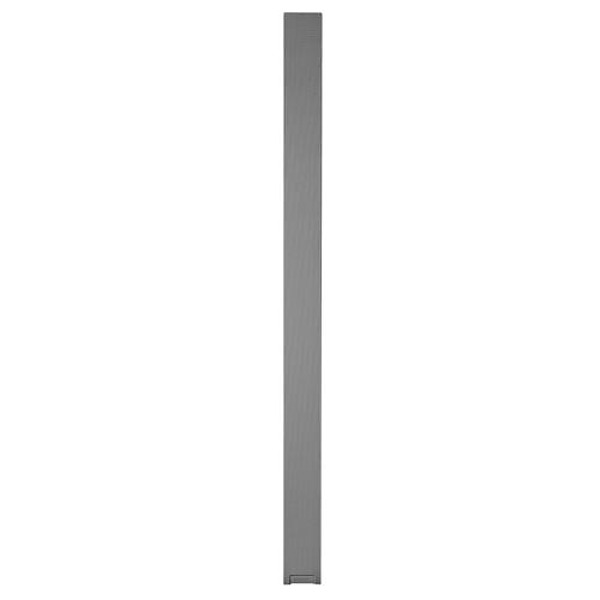

Line Array Indoor Speaker

BOSCH LBC 3201/00

New product

Line Array Indoor Speaker

More details

This loudspeaker, with its excellent directivity and high power output, can handle medium and large (reverberant) indoor environments, especially the more acoustically challenging ones.

It is typically used in congress venues, meeting halls and places of worship.

The full frequency range of the LBC 3201/00 makes it ideal for speech as well as music reproduction. Its exceptionally narrow housing (only 8 cm wide) makes it extremely unobtrusive.

The loudspeaker comes with a chart, which shows the ideal installation height for the area that the loudspeaker has to cover. Once the appropriate height has been determined for a given area, the loudspeaker is mounted at an angle marked on the mounting bracket.

This procedure is much simpler and more accurate than traditional trial and error installation methods.

The LBC 3201/00 can be mounted on a wall or directly onto a floor stand LBC 1259/01 with an M10.

Features

• Extended listening area

• Excellent intelligibility of speech and music

• Uniform distribution of natural sound throughout the room

• Suitable for any small to medium enclosures, from canteens to meeting rooms

• Extremely slim

• Voice evacuation compliant as standard

• Ideal combination of advanced acoustics and easy application

• Unrivalled sound quality for its size

• EN 54‑24 and EN 60849 compliant



This product is available on request.

  • Colour Light Grey

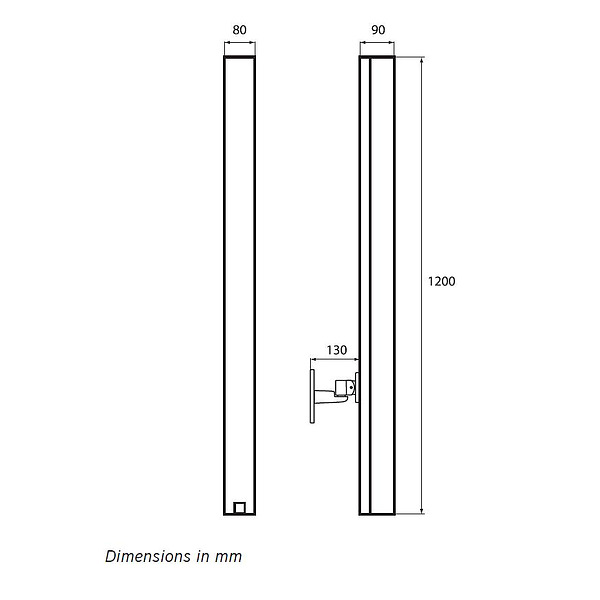

  • Dimensions (H x W x D) 1200 x 80 x 90 mm
  • Frequency Response 190 Hz to 18 kHz (-10 dB)
  • Impedance 167 ohm
  • Power Rating 60 watt (RMS) 90 watt (Peak)
  • Transformer Taps 60, 30, 15 watt
  • Warranty 3 Years
  • Weight 6.4 kg
