6" Passive Subwoofer - 200 Watt

QUEST MXS6I

New product

6" Passive Subwoofer - 200 Watt

More details

Soundtown Osborne Park 9242 8055 www.soundtown.com.au

Extended range bass, and easy to conceal. The MXS6 coupled with MX or MXC loudspeakers provides a complete, full range audio solution. One which architects and venue designers have long been waiting for.

The MXS6 is a suitable low/mid sound pressure level subwoofer for use in permanent installation environments. It is ideal as a bass extension to a distributed background music system, or as a multi-unit system in a bar or music venue. The 'punchy', yet smooth performance of the MXS6 is delivered via the custom 6" 38mm Voice Coil - Diecast Woofer. A decision early on in the design phase was made to build a custom driver to suit the application specific requirements of the MXS6…the result speaks for itself.

This unique band pass subwoofer is specifically tuned for music playback in small venues. The MXS6 delivers high output and efficiency with impressive tuning and performance that are extremely impressive for its size.

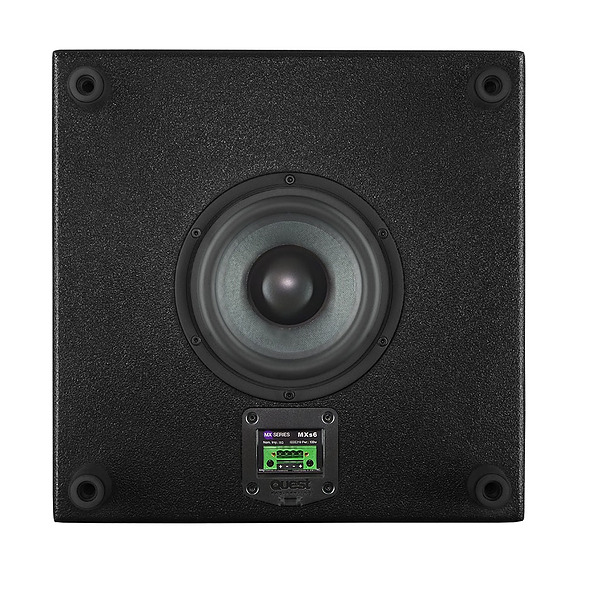

An outward facing driver is located under the cabinet to acoustically pressure load the unit onto a floor/wall, or ceiling installation surface; creating an 'acoustic chamber' effect. This extends the workable frequency range of the subwoofer, and gives a flatter and more natural response. An ultra durable and scratch resistant Polyurea coating is applied to a plywood cabinet. Giving the MXS6 superior protection in high humidity and commercial environments.

Integrating discrete full range sound is a challenge for architects and venue designers. Everything about the design and functionality of the MXS6 marries high performance, clean audio reproduction with varying architectural designs. Whether a new venue, or an existing one, the MXS6 is easily integrated and especially when space is a consideration.

When installed with the optional MP6 installation bracket, the MXS6 can be installed on walls, ceilings, or anywhere a venue designer wishes for concealed placement. The omni directional coverage of the MXS6 allows the it to be placed on a ceiling, or under furniture for complete area coverage; while remaining discrete or invisible.

The physical dimensions and aspect ratios of the MXS6 were chosen specifically to allow it to virtually disappear into a venue. Floor mounted under furniture, in a false ceiling space, or vertically mounted to a wall are just some examples of how the MXS6 can vanish into a venue.

  • Colour Black
  • Dimensions (H x W x D) 169 x 361 x 361mm
  • Frequency Response 44Hz – 90Hz (-9dB)
  • Impedance 16 ohm
  • Material Polyurea coated plywood
  • Maximum SPL 106dB
  • Power Rating 100W RMS
  • Sensitivity 88dB
  • Warranty 2 Years
  • Weight 6kg
