Wired Boundary Condenser Microphone

EV PC BOUNDARY

New product

Wired Boundary Condenser Microphone

More details

PAV – Sales and Install Bayswater 9378 0888 www.pav.com.au/shop
Adasound Public Address Morley 9275 1266 www.adasound.com.au

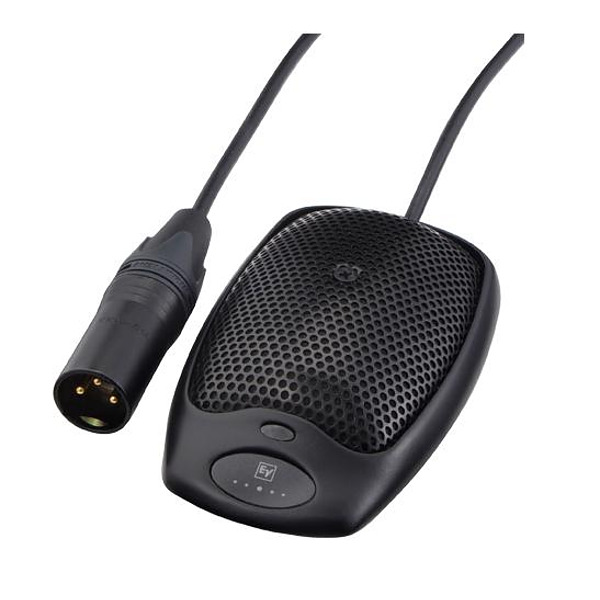

The PC Boundary mic is a low profile microphone that can be used with standard and automatic mic mixers. The PC Boundary mic is a member of the EV PolarChoice series of multi-pattern microphones, and is highly-shielded from RFI/GSM thanks to EV’s exclusive RF Shield technology. The multi-pattern versatility of the PolarChoice microphone makes it a true “problem solver”. With one non-directional and three directional polar patterns available, PolarChoice microphones are ideal for virtually any installation. Of particular interest is the figure 8 pattern that allows miking people on opposite sides of a table with only one microphone, while providing a dramatic reduction of ambient room noise.

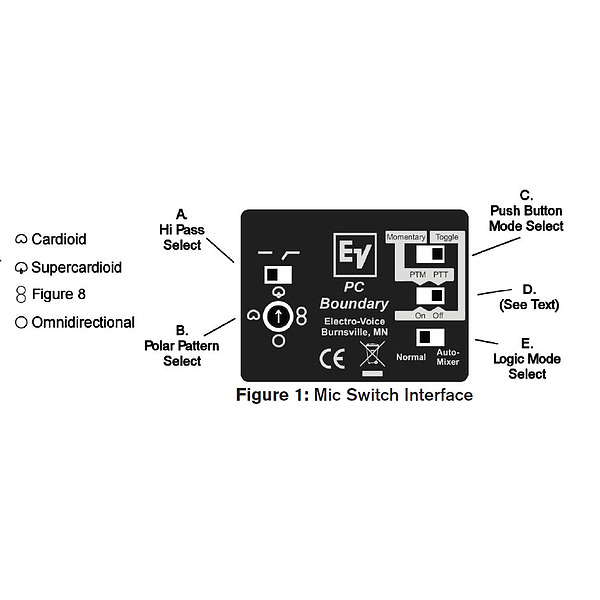

The PC Boundary mic features a large soft-touch mute button. The mute button can be configured for push-on/push-off, push-to-talk, or push-to-mute functions. Mute switch programming is easily accomplished without disassembling the microphone. The microphone can also be programmed to be either live or muted when power is initially applied (when in toggle mode). Additionally, a switch on the bottom of the mic, quickly converts the PC Boundary to automatic mixer mode. In this mode, audio is always on.

A large blue LED indicator lights when the mic is active, and can be remotely controlled when the mic is in automatic mixer mode.
The PC Boundary mic is designed to take acoustic advantage of placing a microphone close to a “boundary” such as conference table.

Features

• Selectable polar patterns: Omni, Cardioid, Supercardioid or Figure 8.

• RF Shield provides superior RFI/GSM shielding.

• Consistent microphone voicing across all four patterns.

• Easy to use mute switch. Can be programmed to operate as either latching on/off or momentary push-to-mute/push-to-talk.

• Disassembly of the mic isn’t required to change switch functions or for use with automatic mixers.

• Compatible with echo cancellation for conference applications.

•High visibility blue LED clearly displays mic status to the user and can be remotely controlled in automatic mixer mode.


This product is available on request.

  • Colour Black
  • Dimensions (H x W x D) 25.8 x 164.6 x 110.4 mm
  • Frequency Response 50 - 20,000 Hz
  • Material Steel
  • Polar Pattern Omni, Cardioid, S-cardioid & Figure 8
  • Warranty 2 Years
  • Weight 0.27 Kg
