Portable Column System with Mixer - Black


New product

Portable Column System with Mixer - Black

More details

P.S.I Audio Mandurah 0438 778 832 www.psiaudio.com.au
Mega Music Myaree Myaree 9330 2777 www.megamusiconline.com.au
Music Mart Midland 9250 2015 www.musicmart.com.au
Soundtown Osborne Park 9242 8055 www.soundtown.com.au
PAV – Sales and Install Bayswater 9378 0888 www.pav.com.au/shop
Sound Centre Music Gallery Morley 9370 1185 www.soundcentre.com.au

Designed to deliver a step up in sound quality and set a new performance standard for compact column speaker systems - EVOLVE 30M is perfect for solo musicians, small groups, mobile entertainers and smaller venues that need an easy to use, highly portable and lightweight system with extraordinary coverage and output for its size.

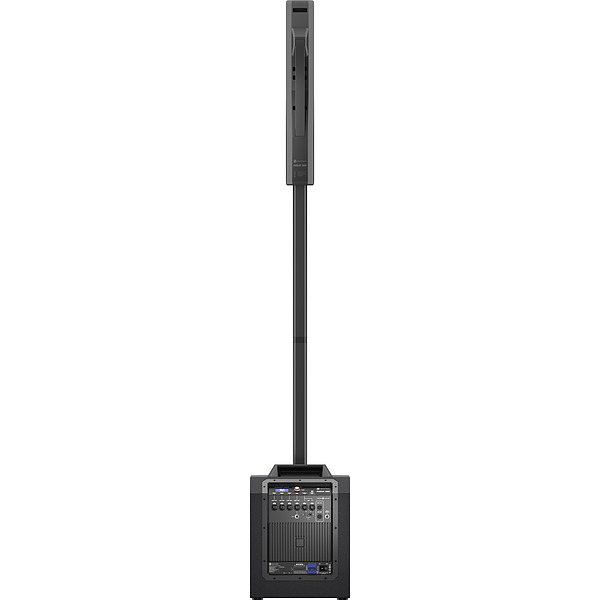

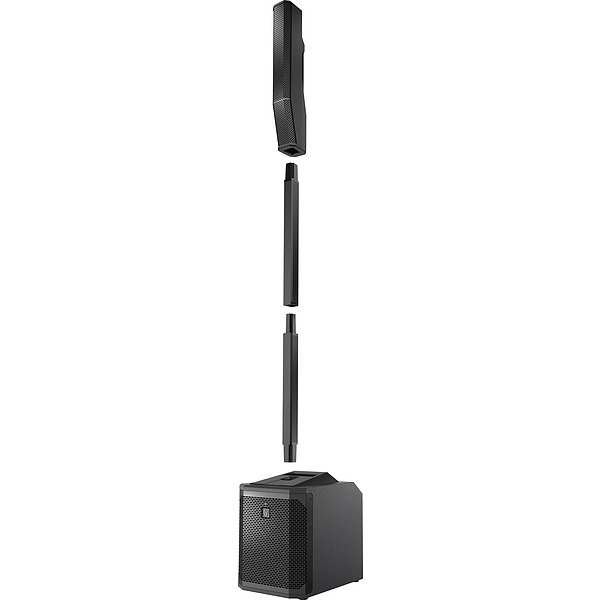

EVOLVE 30M comes ready to go with speaker array, symmetrical aluminum pole connectors with internal wire assembly and magnetically assisted latching, subwoofer, and included pole/array carry case all designed to pack up compactly, set up and tear down quickly, look great on stage, and withstand real world wear and tear.

The full range column array and its six 2.8” neodymium drivers provide room-filling ultra-wide 120° coverage via custom designed waveguides, arrayformed 40° asymmetrical vertical coverage ensures acoustic output is directed towards both sitting and standing audience members. The array enclosure is constructed from a durable composite material and incorporates an ergonomic aluminum handle. Four tuning ports are located on the rear of the enclosure for acoustic optimization. A 10” subwoofer is housed in a 15 mm wood enclosure with a high efficiency laminar flow vent design, for enhanced rigidity and acoustical performance.

The Class-D amplifier provides up to 1000 W of output power. 500 Watt to the subwoofer and 500 Watt to the column array. The speakers are protected by a black powder coated 18 gauge steel grille. Combined, these components generate a genuinely stunning performance to size ratio with an elegant form factor that looks as good as it sounds. The most extensive feature set in its class.

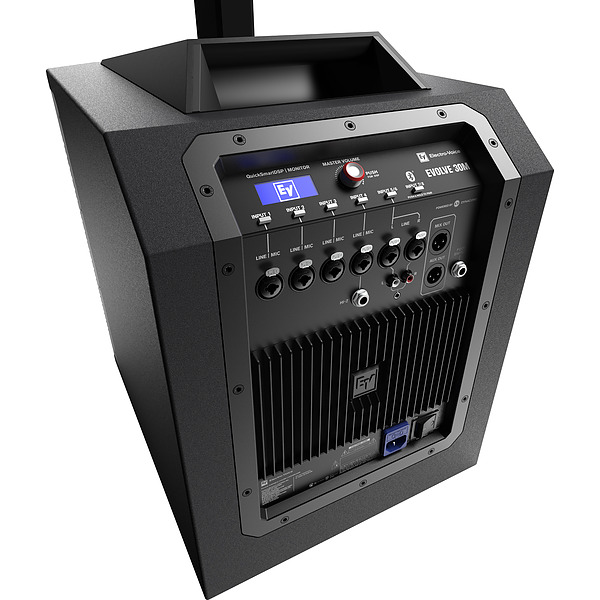

The EVOLVE 30M has an integrated full function and fully programmable eight channel digital mixer with multiple inputs (4x XLR/TRS combo line/mic inputs, 1x XLR/TRS stereo line input, 1x RCA, 1x 3.5 mm stereo, 1x Hi-Z instrument input, wireless Bluetooth® Audio Input), and professional grade preamps and mixer functions all designed in collaboration with the world class mixer engineering team at EV’s sibling brand Dynacord. For the performing musician, Hi-Z and foot switch inputs are included for flexible system configuration, and a range of onboard studio quality effects (30 presets, including chorus, delay, flange and reverb, via two FX channels) add myriad options for finessing your sound. This reduces set up time and on stage clutter by minimizing the need for external equipment such as a mixer and effects pedals, which also makes loading in and out of the venue quicker


  • Designed to deliver absolutely uncompromising sound quality real pro audio in a column format
  • The most complete package in its class - powerful DSP, integrated mixer, Bluetooth remote control and streaming, and more
  • Custom designed EV engineered components what’s behind the grille makes a difference
  • Ultra lightweight, single trip portability and super quick setup
  • Colour Black
  • Coverage (H x V) 120° x 40°
  • Frequency Range 45 Hz to 20 KHz (-10 dB)
  • Maximum SPL 123 dB
  • Power Rating 1000 watt
  • Warranty 3 Years
  • Weight 20Kg
