Power Amplifier - 150 watt x 2


New product

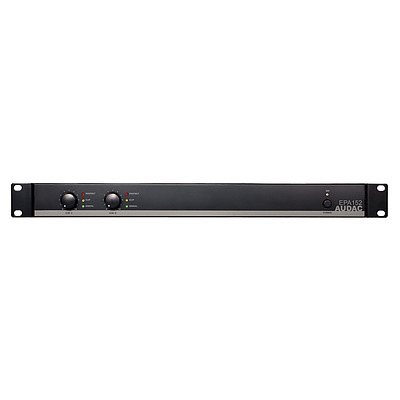

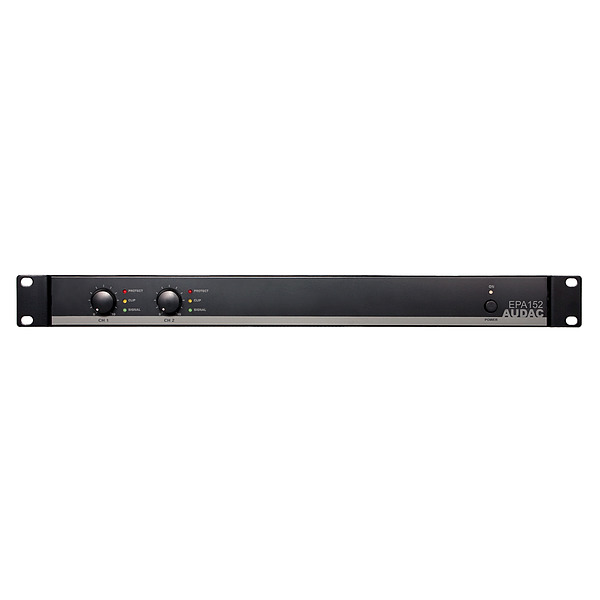

Power Amplifier - 150 watt x 2

More details

Advanced Production Engineering Claremont 0487 465 597
K2 Audiovisual Willetton 9466 2508 www.k2av.com.au
PAV – Sales and Install Bayswater 9378 0888 www.pav.com.au/shop

The EPA series are energy efficient Class-D power amplifiers designed for a wide variation of applications, ranging from standard stereo configurations to multi zone distributed speaker systems. They come available in various models with different output configuration and power ratings.

An outstanding sound quality is combined with other known advantages of Class-D amplifiers such as high energy efficiency. Automatic signal detection switches the amplifier to standby mode when no input signal is detected. This makes the amplifier comply to international energy and environmental requirement standards. The compact size and lightweight design only requires a single 19” rackspace, while making them suitable for both fixed rack and mobile applications. The convection cooled construction requires only a minimum maintenance while guaranteeing high reliability.

The EPA152 is built as a dual channel (Stereo) amplifier containing two individually controllable channels capable of delivering a power of  2 x 150 Watt in stereo mode. In bridge mode, an output power of  300 watt can be delivered to a single load. It features various specific functions and advanced protection circuitry which protects against DC malfunctioning, short circuit, overheating and overload.

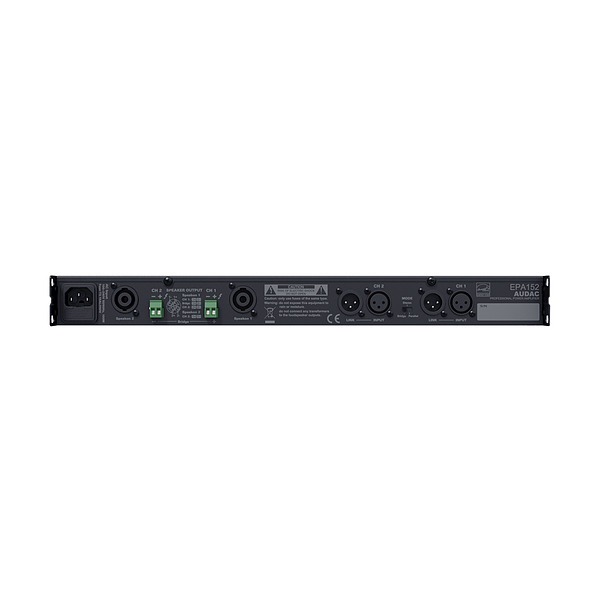

The signal input connections are implemented using balanced XLR connectors with link output connectors, allowing linkthrough to other amplifiers. Loudspeaker outputs are connected using both Speakon compatible and terminal block output connectors.


  • 2 x 150 Watt RMS output power
  • Energy-star certified
  • Standby energy saving mode
  • Lightweight Class-D amplifier
  • Convection cooled
  • Advanced protection circuitry
  • Stereo, parallel and bridged mode
  • High efficiency
  • Colour Black
  • Dimensions (H x W x D) 44 x 482 x 330 mm
  • Power Rating 2 x 150 Watt @ 4 ohms
  • Warranty 2 Years
  • Weight 4.1 kg
