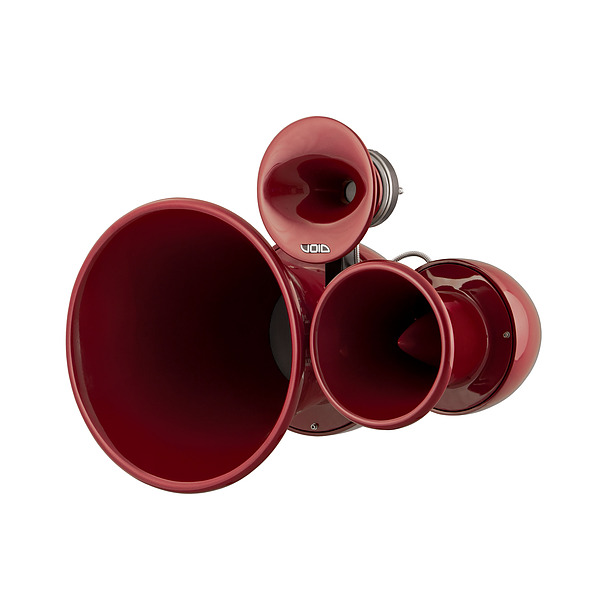

Three-Way Bi-amped Sculpted Loudspeaker Array View larger

Three-Way Bi-amped Sculpted Loudspeaker Array


New product

Three-Way Bi-amped Sculpted Loudspeaker Array

More details

AVHI Australia Osborne Park 1300 650 144
Power Music Productions Claremont 9385 6996
PAV – Sales and Install Bayswater 9378 0888
3 Monkeys Audiovisual West Perth 9228 1681
Venue Technical Services City Beach 9285 0539

The revolutionary three-way bi-amped Air Motion sculpted loudspeaker array sets an entirely new standard in audio aesthetics. Never before has so much style and performance been brought together in perfect harmony.

Air Motion comprises three transducers, a 12" low frequency driver, an 8" mid frequency driver, and a 1.5" high frequency compression driver – each loaded by an isometric conical horn and housed in a skeletonised format free from restricting and potentially resonant enclosures. Air Motion harnesses the excellent inherent sound quality of the conical horn, whose propagation is based on the spheroid section and allows for solid radiation angles. The benefits are twofold: tight beamwidth control is maintained over the 50° horizontal by 60° vertical dispersion pattern, giving higher output and more defined sound quality due to a decrease in early reflections; and constant directivity is achieved across the horn's entire dispersion, allowing for an exceptionally balanced waveform transmission.

Air Motion will normally be deployed either using a proprietary integral flying and mounting system, or by means of an optional floor or subwoofer mounted ground support system, forming a completely stable and correctly angled audio point source. The Fibreglass Kevlar composite structure is finished in Void red, although as with other Air Series enclosures Air Motion is available in a wide range of custom colours to match specific décor demands.


  • Visually striking appearance for style-led environments
  • Exceptionally balanced waveform transmission
  • Fibreglass Kevlar composite construction
  • Standard red finish, optional custom colours
  • Integrated flying and mounting system
  • Optional floor stand or flying bracket
  • Internal electronic control prevents overdriving
  • Coverage (H x V) 60° x 50°
  • Dimensions (H x W x D) 600 x 850 x 760mm
  • Frequency Response 140Hz - 20kHz ±3dB
  • Impedance 8 ohms
  • Material Fibreglass Kevlar
  • Maximum SPL 138dB peak
  • Power Rating LF: 500 Watts RMS - HMF: 250 Watts RMS
  • Sensitivity LF: 106dB 1w/1m - HMF: 108dB 1w/1m
  • Warranty 3 Years
  • Weight 35.4kg
