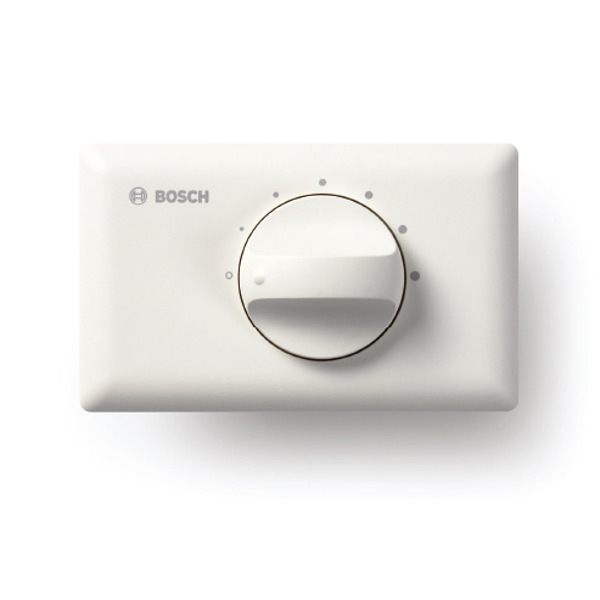

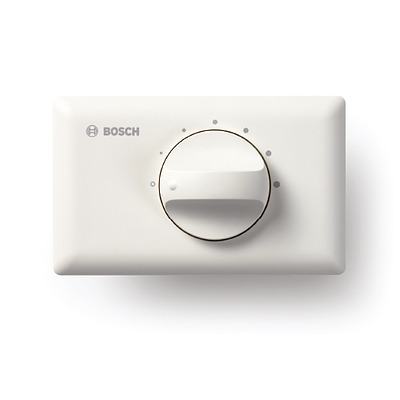

Volume Control Landscape Style - 36 Watt

Public address systems are often used for both announcements and background music distribution. Volume controls can be used to adjust the sound level locally. In the event of an (emergency) announcement, the built in relay ensures that the message is broadcast at a preset level, independent of the local volume setting.

The volume controls are suitable for 3wire and 4wire override systems.

The volume controls are available in 12 watt and 36 watt and available in portrait (vertical) and landscape (horizontal) design.

The 36 watt volume control features 8 attenuation steps of -3 dB and an off position. The intuitive graphics around the knob clearly shows the attenuator steps and off position.

Features

• Available in Portrait – and Landscape design
• Suitable for 3wire and 4wire override systems
• Built-in 24 VDC override relay
• Robust design
