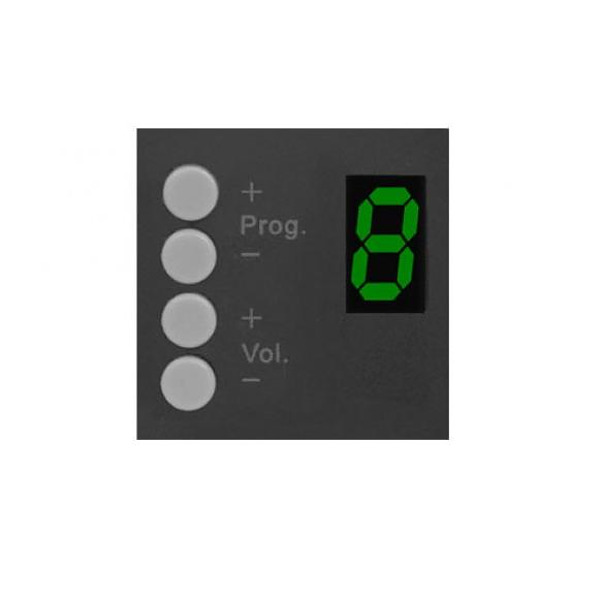

The MWX45B is a black wall panel controller to be used in combination with the AUDAC MTX series Multi Zone audio matrix systems.

It provides the possibility to select the desired audio source and control the volume for one zone. The 7 segment LED display indicates the current selected audio source (1-8) or volume.

The connection between the wall panel and the matrix system is achieved by using standard CAT5 UTP cable which should be connected to the terminal block connector on the back side of the wall panel.

Audac wall panel controllers require back boxes suited to the install. See Accessories Tab for mounting options

Features

  • Source selection (1-8)
  • Volume control
  • Terminal block connection
  • Slim design
  • Blends beautifully into walls
  • Easy installation



  • Colour Black
  • Dimensions (H x W x D) 45 x 45 x 33 mm
  • Material ABS Plastic
  • Warranty 3 Years
  • Weight 28g
