Power Amplifier 500 watt x 4

The SMA & SMQ amplifiers are defining a new standard in affordable amplification for both fixed and mobile audio installations. Their different channel configurations and availability in various output powers provide an enormous flexibility for numerous applications.

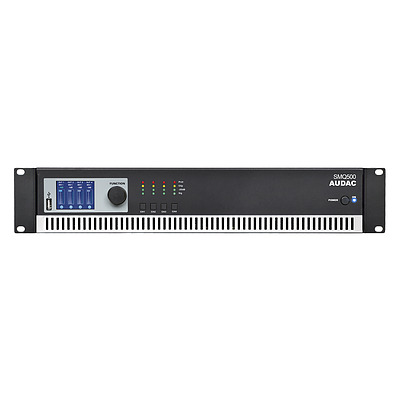

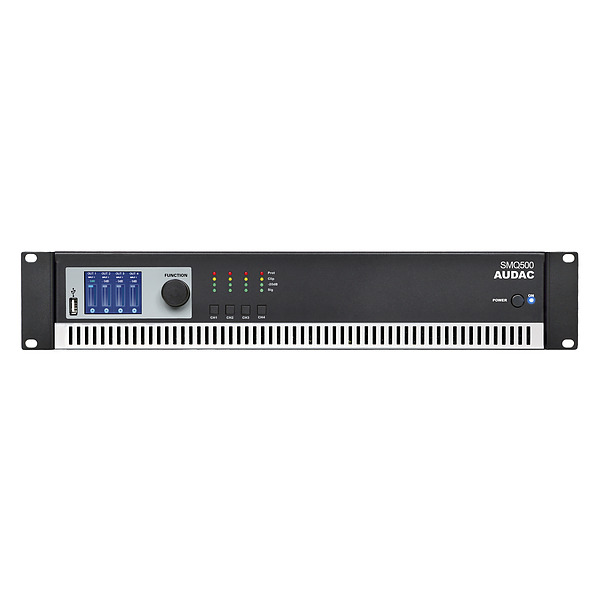

The SMQ500 is the four channel version of this Class-D power amplifier with an output power of 500 Watt for each channel. The WaveDynamics™ DSP processor in combination with the 2.5” LCD display gives an unmatched user experience with intuitive functions overview for easy configuration.

Acoustics can be optimized using the filters selectable between Low / High & Band Pass and the 7 Band equalizer both with adjustable frequencies and Q-factor. Other provided functions are delay and dynamic bass boost. These settings can be custom configured using the front panel of the amplifier, whereby access can be given on two different levels (User & Administrator) using password or USB-key protection. Loudspeaker protection is provided by an output power limiter whereby the maximum output power for every channel (in Watt) can be configured.

Configuration is made simple by the loudspeaker presets and full system configurations which can selected from a library and uploaded with a USB flash drive. This ensures the best acoustical performance with a ‘bullet-proof’ loudspeaker protection.

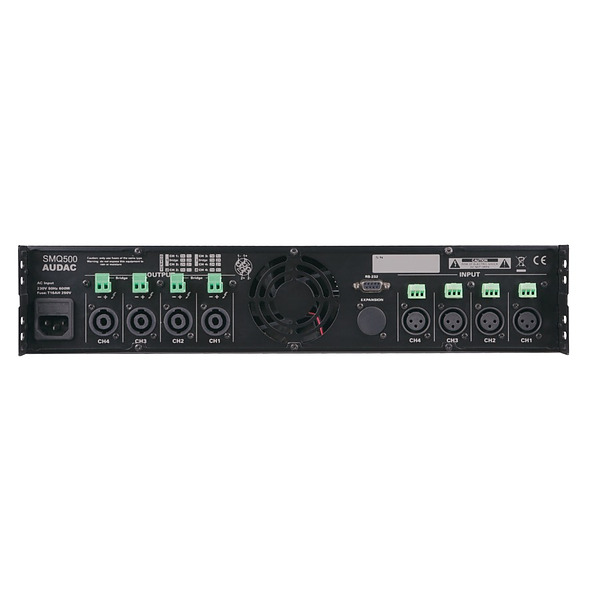

A great input flexibility and source compatibility is provided by the input selection matrix in combination with the XLR and terminal block signal connections. The outputs are performed using speakon compatible and terminal block connections. System integration is made easy using the RS-232 control port.

Features

• 4 x 500 Watt RMS output power
• Lightweight Class-D amplifier
• Advanced DSP & loudspeaker management
• Intuitive graphical interface on 2.5” LCD display
• Pre-loadable loudspeaker & set configurations
• Unmatched technology and affordability
• Flexible input and output configuration
• XLR & terminal block source compatibility
• RS-232 control and USB loadable configurations
