Power Amplifier - 250 watt x 4

AUDAC EPA254

New product

Power Amplifier - 250 watt x 4

More details

PAV – Sales and Install Bayswater 9378 0888 www.pav.com.au/shop
Venue Technical Services City Beach 9285 0539 www.venuetechnical.com.au
Gilmour & Jooste Electrical Balcatta 9240 8663 www.gilmourandjoasteelectrical.com.au
Advanced Production Engineering Claremont 0487 465 597
Concert & Corporate Productions Belmont 9479 3666 www.ccpwa.com
Stage & Studio Productions East Vic Park 6161 9704 www.stageandstudio.com.au

The EPA series are energy efficient Class-D power amplifiers designed for a wide variation of applications, ranging from standard stereo configurations to multi zone distributed speaker systems. They come available in various models with different output configuration and power ratings.

An outstanding sound quality is combined with other known advantages of Class-D amplifiers such as high energy efficiency. Automatic signal detection switches the amplifier to standby mode when no input signal is detected. This makes the amplifier comply to international energy and environmental requirement standards. The compact size and lightweight design only requires a single 19” rackspace, while making them suitable for both fixed rack and mobile applications. The convection cooled construction requires only a minimum maintenance while guaranteeing high reliability.

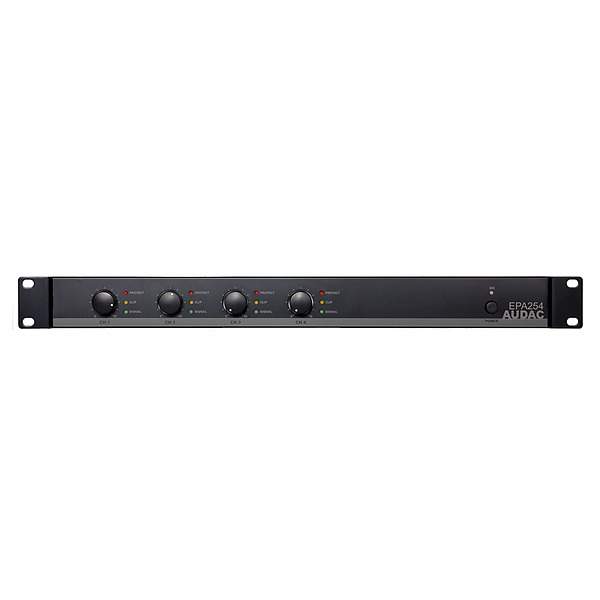

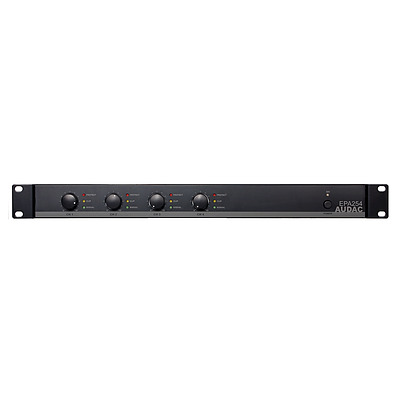

The EPA254 is built as a quad channel amplifier containing four individually controllable channels capable of delivering a power of 4 x 250 Watt in stereo mode. The outputs can be bridged two by two for merging their power, while an integrated (selectable) active crossover network allows to apply high-pass and low pass filters to the channels, creating a sub / top configuration for a stereo system with bass cabinet. Specific functions and advanced protection circuitry which protects against DC malfunctioning, short circuit, overheating and overload.

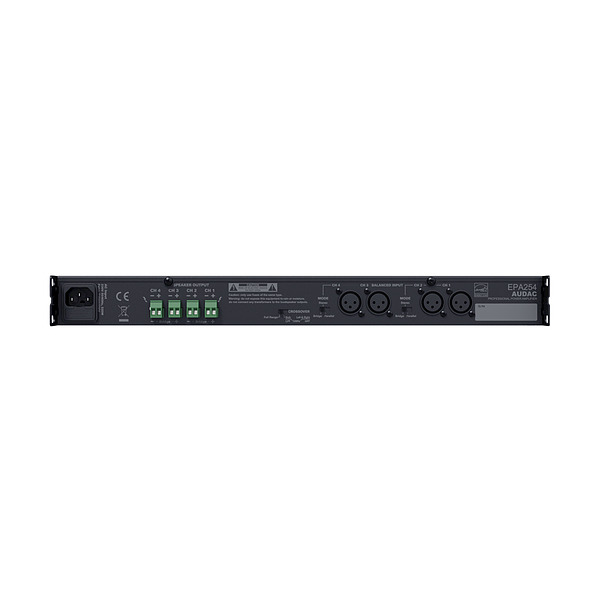

The signal input connections are implemented using balanced XLR connectors. Loudspeaker outputs are connected using terminal block output connectors.

Features

  • 4 x 250 Watt RMS output power
  • Energy-star certified
  • Standby energy saving mode
  • Internal crossover network (switchable)
  • Lightweight Class-D amplifier
  • Convection cooled
  • Advanced protection circuitry
  • Stereo, parallel and bridged mode
  • High efficiency
  • Colour Black
  • Dimensions (H x W x D) 44 x 482 x 330 mm
  • Power Rating 250 watt x 4 @ 4 ohms
  • Warranty 2 Years
  • Weight 4.70 Kg
