PAVIRO Router

BOSCH PVA-4R24

New product

PAVIRO Router

More details

Concept Audio Visual West Perth 9429 4333 www.conceptav.com.au
Blue Force Tuart Hill 1300 731 716 www.blueforce.com.au
Gilmour & Jooste Electrical Balcatta 9240 8663 www.gilmourandjoasteelectrical.com.au
Savi Systems Bentley 9451 1730 www.savisystems.com.au
Wesco Electrics (1966) East Perth 9325 3218 www.wesco.com.au

The PVA-4R24 24 Zone Router is a zone extension for the PAVIRO system. The PVA-4R24 adds 24 zones, 20 GPIs, 24 GPOs and 2 control relays to the system and is controlled and supervised via the CAN bus by the PVA-4CR12 (Controller). Up to 20 external routers can be connected to one controller. One router can handle up to 4000 watt speaker load. The maximum load of one zone is 500 watt.

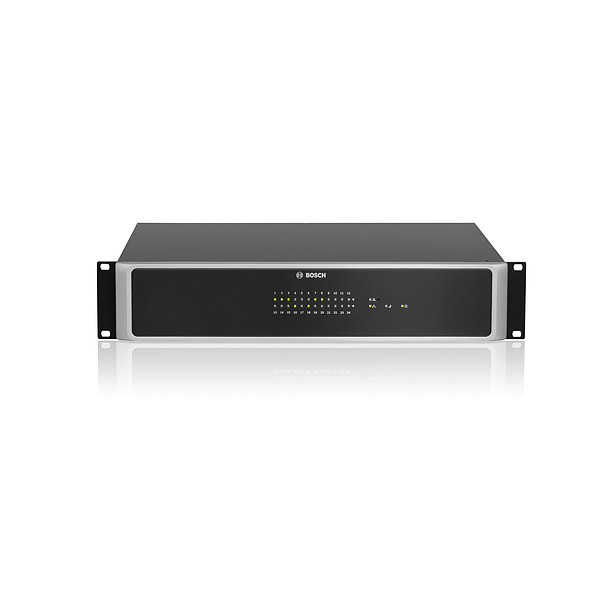

The zone indicator lights on the front indicate the current status of every zone:

• Green: Zone in use for non emergency purpose
• Red: Zone in use for emergency purpose
• Yellow: Zone fault detected
• Off: Zone in idle condition

Features

  • Routing up to 24 zones from 2–500 Watt
  • Low power consumption in standby mode
  • Extreme flexibility
  • Excellent sound quality > 103 dB s/n ratio
