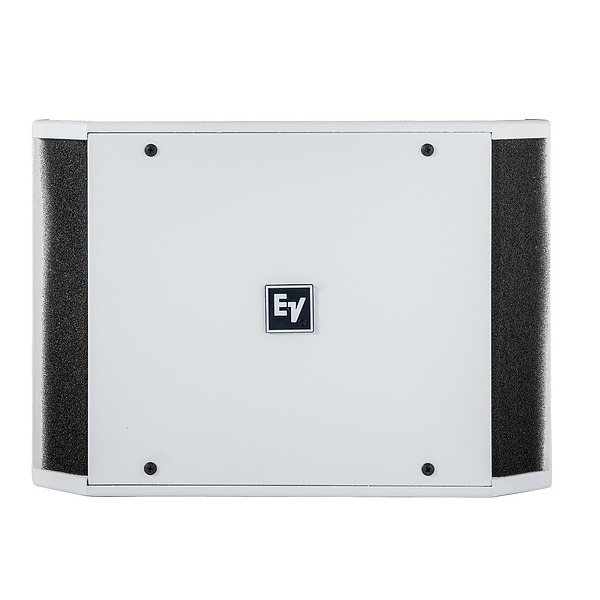

12" Passive Subwoofer - 175 Watt View larger

12" Passive Subwoofer - 175 Watt

EV EVID-S 12.1W

New product

12" Passive Subwoofer - 175 Watt

More details

Advanced Production Engineering Claremont 0487 465 597 www.apengineering.com.au
Soundtown Osborne Park 9242 8055 www.soundtown.com.au
PAV – Sales and Install Bayswater 9378 0888 www.pav.com.au/shop

The EVID-S12.1 subwoofer, from Electro-Voice, is a compact, high performance, 12" (305 mm) woofer loudspeaker with outstanding performance for the most demanding professional and commercial sound.

applications. Designed and engineered for use in background and foreground music, and sound reinforcement applications, the EVID-S12.1 is the ideal solution for indoor and outdoor applications, such as restaurants, bars, patios, retail, fitness clubs, hospitality, theme parks, leisure venues, and others.

The 12.1 subwoofer’s slot-loaded design allows for flexible mounting and placement while delivering the smoothest bass response possible.

The 12" high excursion woofer, with its dual voice coil design, enables both the left and right channels to feed into the speaker while providing crossed over outputs for up to 4 satellite speakers at the same time.

If desired, the EVID-S12.1 can be powered separately for an even more powerful presence. The EVID-S12.1 features reinforced steel fastener construction that allows for a variety of mounting configurations. The EVID-S12.1 is available in black or white, and can easily be painted to match the decor. All mounting hardware is included.

The wide range of EVID surface mount speakers has been designed to work together as a complete system in a variety of different surface mount constructions, and to be used in combination with other EVID ceiling and in wall speakers.

Features

  • High excursion 12" woofer with dual voice coil to accommodate L & R channels
  • 200 W power handling provides for 127 dB maximum SPL (133 dB Peak)
  • Crossover input panel included
  • Colour White
  • Dimensions (H x W x D) 413 x 584 x 303 mm
  • Frequency Response 40 Hz – 140 Hz1
  • Impedance 8 ohm
  • Maximum SPL 127 dB
  • Power Rating 200 watt (RMS) 800 watt (Peak)
  • Sensitivity 104 dB
  • Warranty 3 Years
  • Weight 17.8 Kg
