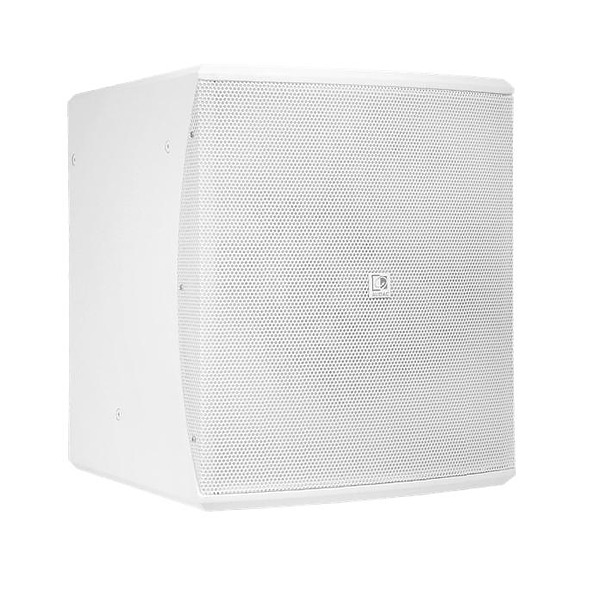

10" Wall Mount Subwoofer - 225 Watt View larger

10" Wall Mount Subwoofer - 225 Watt

AUDAC BASO10W

New product

10" Wall Mount Subwoofer - 225 Watt

More details

Concert & Corporate Productions Belmont 9479 3666 www.ccpwa.com

The BASO cabinets are universally usable passive bass cabinets. Their bass reflex design is engineered to be as compact as possible while giving the maximum performance in terms of sound quality and pressure. Their enclosures are crafted out of sturdy high quality plywood while their elegant design enables them to be placed in any environment.

The BASO10 is loaded with a 10” high performance woofer with an RMS power rating of 225 Watt and maximum power of 450 Watt. The strength of this loudspeaker originates from a four layer wounded 1.5” voice coil in combination with an over sized ferrite type magnet which provides an unusual high force factor. In combination with the low loss suspension, this results in a linear behaviour with high efficiency and extremely wide frequency range

These carefully selected high grade materials in collaboration with accurate acoustical craftsmanship results in a deep and true to nature reproduction of bass. The highly efficient design results in a sensitivity of 96 dB with capability of continuous sound pressure production up to 120 dB. The frequency response ranges from 54 Hz up to 1.2 kHz while going down to 38 Hz at -10 dB.

Besides these acoustical aspects, a lot of attention has been paid to all other aspects making it as versatile as possible. The enclosure is compact designed without any sacrifice to robustness due to the 15 mm high quality plywood material finished with structured coating.

Connections are made using two SpeakON compatible connectors located in a recessed connector dish, allowing link through to other cabinets. This also allows close placement to any wall or corner.

Features

  • Compact & flexible design
  • High performance 10” driver
  • Flat and wide frequency range
  • Recessed connector dish
  • Colour White
  • Dimensions (H x W x D) 380 x 320 x 380 mm
  • Frequency Response 38 Hz - 2 kHz (-10 dB)
  • Impedance 8 ohms
  • Material 15 mm plywood with structured coating
  • Maximum SPL 120 dB
  • Power Rating 225 watt (RMS) 450 watt (Peak)
  • Sensitivity 96 dB
  • Warranty 2 Years
  • Weight 10 Kg
