Paging Console for MTX88 - 8 Zone

AUDAC MPX88

New product

Paging Console for MTX88 - 8 Zone

More details

Wesco Electrics (1966) East Perth 9325 3218 www.wesco.com.au
K2 Audiovisual Willetton 9466 2508 www.k2av.com.au
PAV – Sales and Install Bayswater 9378 0888 www.pav.com.au/shop
Techwest Solutions Osborne Park 9445 8844 www.techwestsolutions.com.au
Linked Integration Parkwood 0412 757 966 www.linkedintegration.com.au

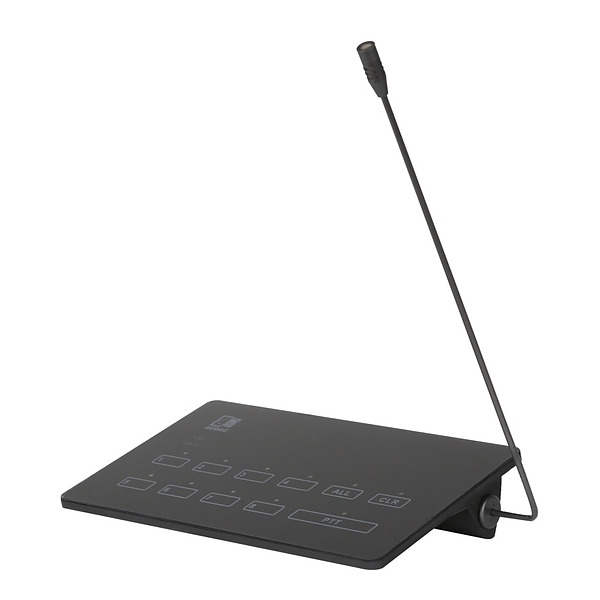

The MPX microphones are specifically designed for use in combination with the MTX Multi Zone audio matrix system. The MPX88 features 8 zone selection buttons, allowing use in combination with the MTX88 8-zone matrix.

The construction is made of weighted ABS material and finished with an acrylic top panel. The buttons are integrated using the capacitive touch principle without any mechanically moving parts. Selection & status LED’s are integrated below the acrylic surface, giving an indication of the selected zones and databus status. Besides the zone selectors, quick operation is allowed through the Select & Clear all buttons, while the push-to-talk (PTT) button should be pressed during the announcement.

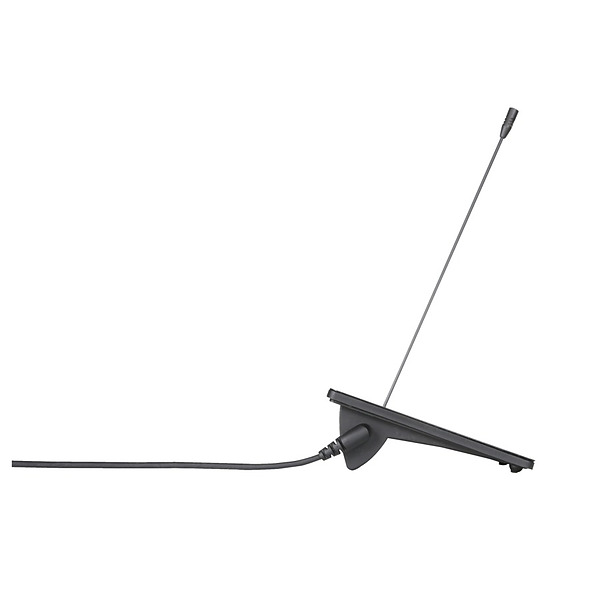

An integrated chime tone is heard before any announcement. Announcements can be made to the integrated pipe neck microphone with a cardioid pickup pattern which can be tilted to the desired angle.

The microphone should be connected to the matrix system using the fixed cable with a length of 2 meters. The distance can be extended to a maximum length of 300 meters, using standard CAT5E (or better) twisted pair cabling.

Cascading of multiple paging stations is made possible using the priority-based (userconfigurable) databus, when using additional junction boxes ARJ03P or CP45ARJ.

Features

  • 8 Zone buttons for use with MTX88
  • Capacitive touch buttons
  • Selection & status indication LED’s
  • PTT, Select & Clear all buttons
  • Pipe-neck microphone (cardioid)
  • Integrated chime
  • Priority based paging
  • 2 Meter fixed connection cable
  • Up to 300 meters
  • Colour Black
  • Dimensions (H x W x D) 43 x 221.5 x 111.6 mm
  • Polar Pattern Cardioid
  • Warranty 3 Years
  • Weight 0.33 Kg
