Optional SPL Display Unit for EQ Limit

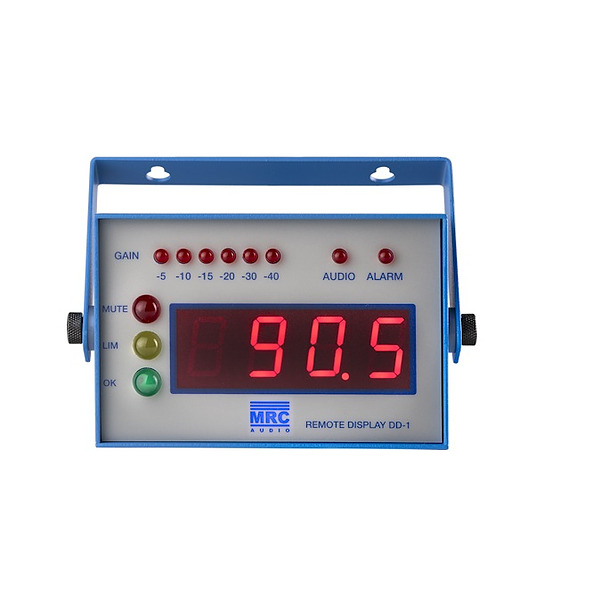

The remote display is provided optionally. EQlimit can works without it. It has four high efficiency red 20mm high digits, for a comfortable reading of the sound level. A row of eight LEDs at the top, show the dynamic attenuation applied by the limiter, peaks at the input signal and the presence of alarms. The three 10mm LEDs to the left of the four digits show the state of the limiting system:

GREEN when a signal is present at the input and the output is below the limiting threshold.

YELLOW when the output signal reaches or is over the limiting threshold and therefore the limiter is applying attenuation correspondingly.

RED when the limiter is turning on, or when the output signal is cut off because of any alarm or due to the time of the day being beyond the working time configured in the levels window.

At switch on, the remote display reproduces a verifying sequence showing a count down from 9 to 0 at the four digits and lighting up all the LEDs. At the end of the countdown it starts displaying the sound level and the LEDs show the state of the limiter.
