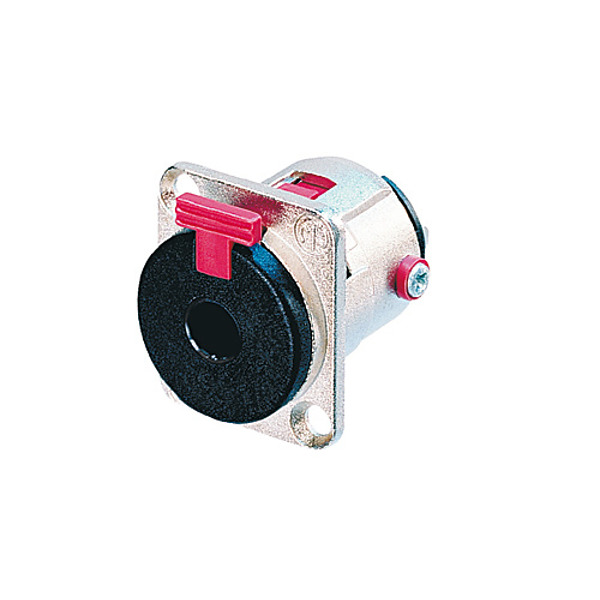

3 pole 1/4" Jack Panel Mount with Latch

Locking 1/4" phone jack, D-size shell, nickel metal housing and silver contacts.

The 3 pole phone jack panel mount version provides stable and secure connections where accidental disconnect or shock and vibration may occur. It latches with standard A-gauge mono or stereo plugs.

Plug locks-in automatically when mating and unlocks only by pressing red release tab.

Standard D size front panel appearance.

Selectable grounding options.

Features

• Securely locking chassis jack

• Mates with all mono and stereo plugs specified acc. EIA RS-453 (A-gauge)

• Closable grounding options: standard isolated, to get a sleeve/panel connection red isolator on lateral screw must be removed

• Dimensionally compatible with D Series (31 x 26 mm)

• Solder terminals
