Music Horn - 30 Watt

BOSCH LH1-UC30E

New product

Music Horn - 30 Watt

More details

Blue Force Tuart Hill 1300 731 716 www.blueforce.com.au
FX Comms & AV Fitzroy Crossing 1300 85 66 98 www.fxav.com.au
Gilmour & Jooste Electrical Balcatta 9240 8663 www.gilmourandjoasteelectrical.com.au
Kosmic Electronic XPD Division Osborne Park 9204 7577 www.kosmic.com.au
Stage & Studio Productions East Vic Park 6161 9704 www.stageandstudio.com.au
PAV – Sales and Install Bayswater 9378 0888 www.pav.com.au/shop

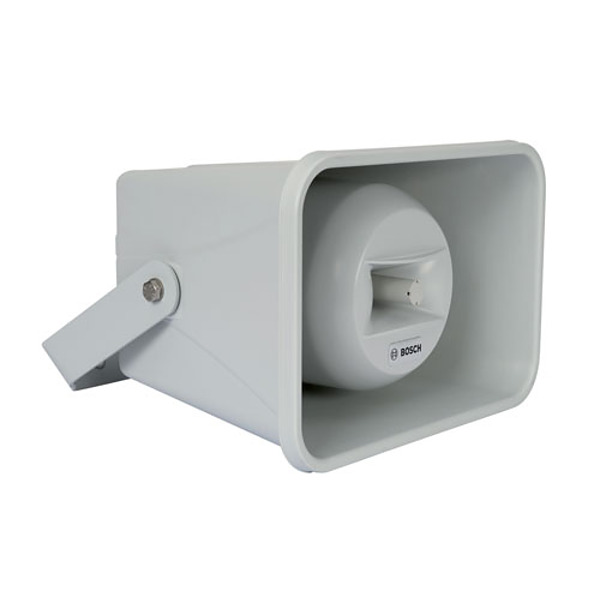

The Bosch LH1-UC30E Music Horn Loudspeaker features a two-way system, resulting in an extended frequency range and high sensitivity which makes it ideal for high quality speech and music reproduction.

The rectangular horn features a unique combination of an entrant horn with two transducers, one for low and the other for high frequencies, resulting in breath taking sound clarity.

The horn is weather proof and can be used in areas with high humidity.

It is therefore suitable for outdoor applications such as sport grounds, sports stadiums, leisure parks, exhibition areas and passenger terminals, as well as for indoor public address.

The ABS horn loudspeaker and aluminum bracket are finished in light grey.

The LH1‑UC30E is designed for use in voice alarm systems and compliant with EVAC standards.

Features

• Excellent speech and music reproduction

• Two‑way system

• Wide opening angle

• Attractive ABS housing

• Provisions for internal mounting of the optional line /loudspeaker supervision board

• EN 54‑24 compliant


  • Colour Light Grey

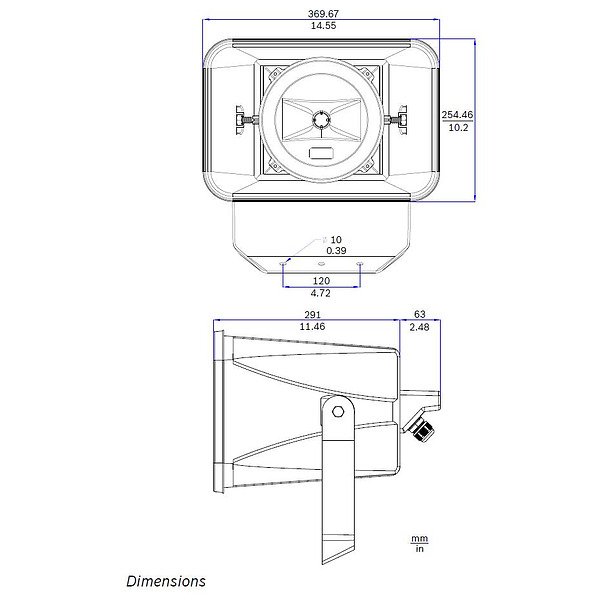

  • Dimensions (H x W x D) 255 x 370 x 354 mm
  • Frequency Response 212 Hz to 20 kHz (-10 dB)
  • Impedance 333 ohm
  • IP Rating IP65
  • Power Rating 30 watt (RMS) 45 watt (Peak)
  • Transformer Taps 30, 15, 7.5, 3.75 watt
  • Warranty 3 Years
  • Weight 5.5 kg
