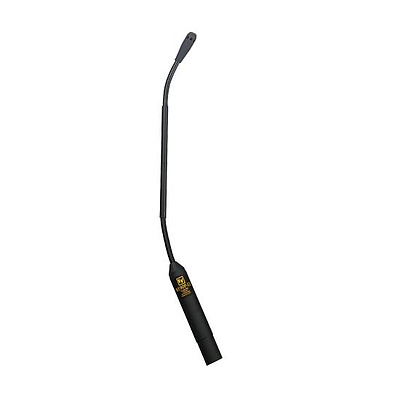

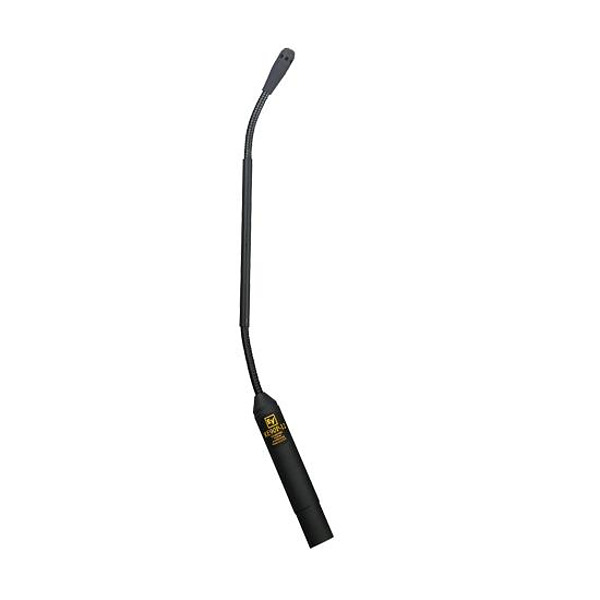

Gooseneck Microphone 12 Inch

The Electro-Voice RE90P-12 podium microphone is a phantom-powered “back-electret” miniature condenser gooseneck microphones. The back-electret feature provides greater sensitivity, wider frequency response, and superior immunity from handling noise than a diaphragm-electret microphone.

The RE90P-12 is highly-shielded from RFI/GSM interference, and are mechanically designed for quick, easy mounting to a lectern, pulpit or podium equipped with a bulkhead female XLR-type 3-pin receptacle. For permanent installation, optional fixed (FMK flange-mount kit) and shock-mounted (CPSM shock-mount kit) accessories are also available.

The RE90P-12 is designed for sound reinforcement applications. The frequency response is tailored for full-range sound reproduction with natural sound pick-up optimized for close-up use. The small diameter gooseneck has two supple joints and a rigid center tube. The rigid tube prevents unsightly twisting of the gooseneck but permits the user to exactly position the microphone.

The electronics housing has a 3/4 – inch diameter base terminated with an XLR-type 3-pin connector which allows the microphone to be plugged directly into an existing panel-mount XLR-type receptacle. The electronics’ output circuit utilizes a transformerless balanced construction with a low-output impedance, which is typically 200 ohms. This permits very long cable runs without degrading the microphone performance.

The RE90P-12 is designed to be phantom powered with a wide voltage range, 9-52 V dc (DIN Standard 45 596).

Features

• RF Shield provides superior RFI/GSM shielding.

• Small size - unobtrusive for podium applications.

• Frequency and cardioid polar response uniform across the range, for natural sound and high resistance to feedback.

• Low, 200-ohm output allows long cable runs.

• Optional CPSM podium shock mount provides more than 15 dB of mechanical shock isolation at 200 Hz.
