Two-Way Horn Loaded Full Range Loudspeaker - Indoor

EV EVH-1152S/64-BLK

New product

Two-Way Horn Loaded Full Range Loudspeaker - Indoor

More details

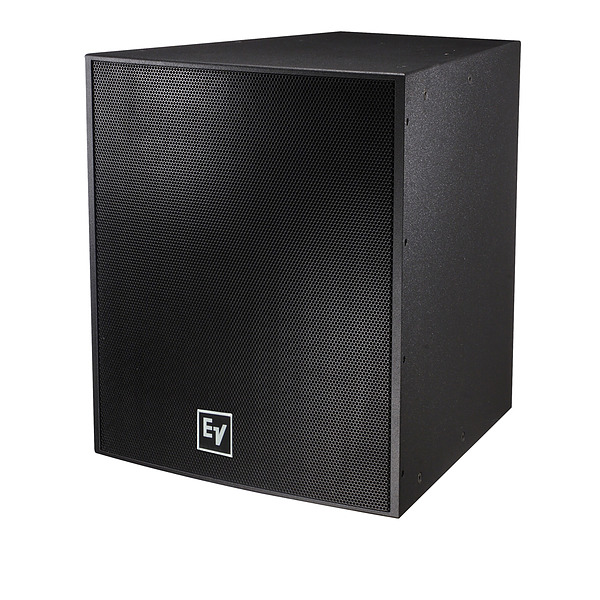

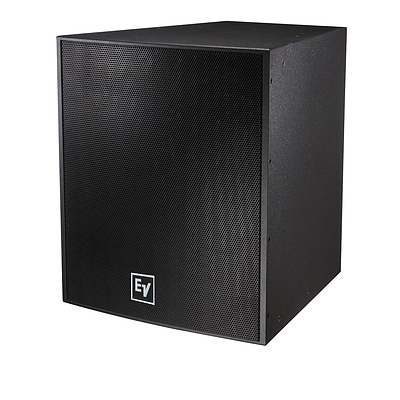

The Electro-Voice® EVH-1152S/64 is a high power, 2-way Horn loaded coaxial loudspeaker system that can be used in a variety of applications where excellent quality sound reinforcement , wide bandwidth directivity control , and high efficiency are required in a compact package.

The EVH-1152S/64 utilizes an ND2B and an SMX2151. The ND2B is a high output 2” titanium compression driver, coupled to a rotatable 12” x 12” Constant Directivity™ 60° x 40° waveguide. The new SMX2151 is a high output, low distortion 15” woofer. Developed by EV engineering the motor, suspension, and electrical characteristics of the woofer are optimized to maximize efficiency and minimize distortion. The passive crossover network employs 24 dB/octave slopes for a smooth response in the vocal range, linear off-axis response, and features a comprehensive protection circuit for long term reliability. This combination of technologies results in a smooth response to 16 kHz and excellent pattern control down to 500Hz.

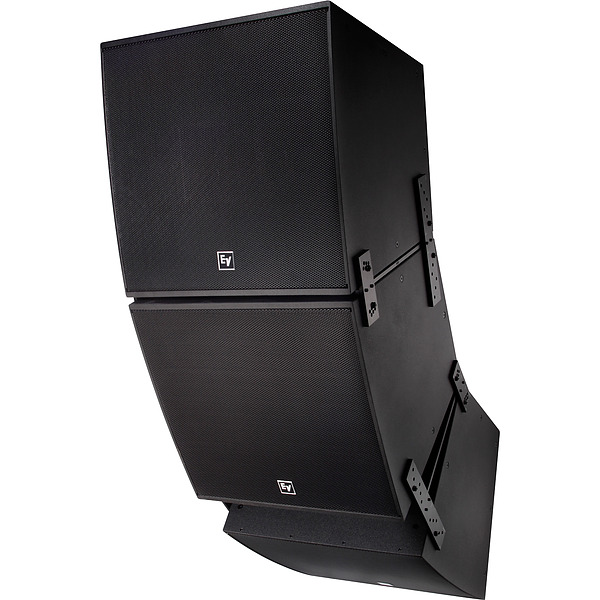

The EVH-1152S/64 features make it ideal for any fixed install application. The trapezoidal enclosure is constructed out of 13 ply, 18mm birch, and coated with EVCoatTM for maximum protection from the elements. PI weather resistant models uses a stainless steel grill grille backed with multiple material layers to prevent weather or humidity ingress. The EVH family of models employ an intelligent combination of superior acoustic design and rigging which allow for vertical and horizontal clusters to be built using any combination of loudspeakers from the entire EVF & EVH Series. 28 suspension points for use with rated eyebolts or EV –I cluster hardware provide low cost, simple rigging solutions. With 5 horn patterns to choose from and an assortment of low frequency and subwoofer loudspeakers, EVH provides you the tools to easily design a custom tailored solution, no matter what the application or budget. The innovative input panel can be customized to one of three input choices, including a phoenix style connector (included in all standard models), dual NL4 type connectors, or a gland nut cover plate (for weatherizing applications).

An available 100 Volt transformer kit can be easily installed for use in distributed systems.

Also available in 60° x 60°, 90° x 40°, 90° x 60° and 90° x 90°

Features

• ND2B 2” (51mm) Diaphragm, 1.4” (36mm) Exit Pure Titanium Compression Driver

• SMX2151 15” (381mm) LF Transducer with Fully Symmetric Drive

• Advanced 4th Order Crossover Network with HF Protection

• Coverage Pattern: 60° x 40° Constant DirectivityTM Rotatable Waveguides

• (28) M10 Threaded Suspension Points


This product is available on request.


  • Colour Black
  • Coverage (H x V) 60° (or 40°) x 40° (or 60°)
  • Dimensions (H x W x D) 768.6mm x 768.6mm x 680.1mm
  • Frequency Response 50 Hz - 16 kHz (-10 dB)
  • Impedance 8 ohms
  • Maximum SPL 138 dB
  • Power Rating 500 watt (RMS) 2000 watt (Peak)
  • Sensitivity 105 dB (1W/1m)
  • Warranty 5 Years
  • Weight 64.9 Kg
