Attenuation Module Kit for EVA System

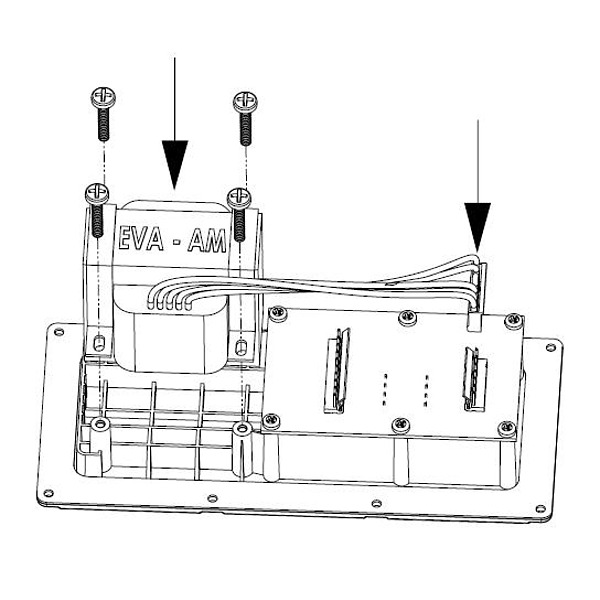

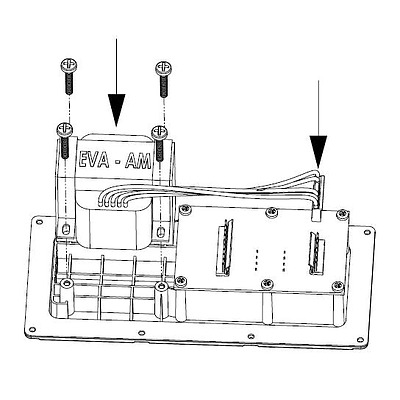

This optional attenuation module mounts on the inside of an EVA input panel, and attenuates the entire module by 3, 6 or 9 dB.

The nominal impedance of an EVA module is 16 ohms.

Up to six paralleled EVA modules can be driven from a single amplifier channel capable of driving a 2.7-ohm nominal impedance.

(16 ohms / 6 modules = 2.7 ohms).



This product is available on request.
