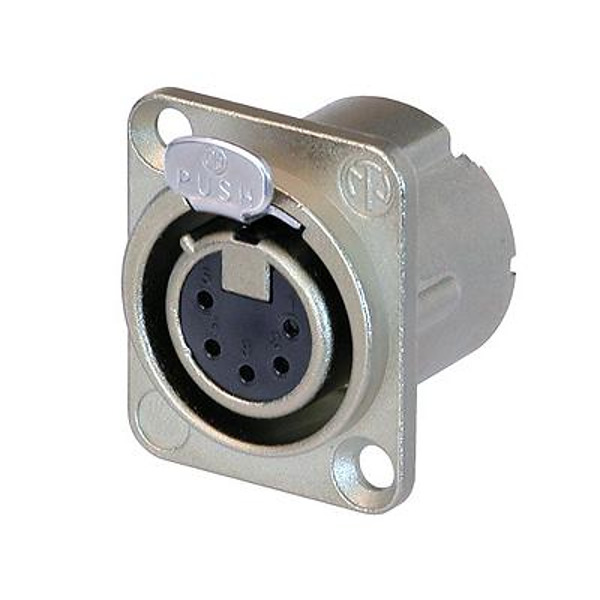

5 Pin Female Chassis Connector

Product Code: NEUTRIK NC5FD-LX

Condition: New product

Available From

Venue Technical Services	City Beach	9285 0539	www.venuetechnical.com.au
P.S.I Audio	Mandurah	0438 778 832	www.psiaudio.com.au
Megavision Sound & Lighting	Osborne Park	9444 6556	www.megavision.com.au
Power Music Productions	Claremont	9385 6996	www.powermusic.com.au
Concept Audio Visual	West Perth	9429 4333	www.conceptav.com.au
Totally Sound	Bunbury	9725 4599	www.totallysound.com.au

More info

5 pole female receptacle, solder cups, Nickel housing, silver contacts.

The DLX series features a compact all metal housing with an ingenious duplex ground contact, which offers excellent RF protection and shielding.

It is the ideal match for mating with Neutrik's EMC XLR cable connector.

Features

• All metal housing offers best overall RF protection and electromagnetic shielding

• Duplex ground contact for excellent contact integrity between chassis and cable connector

• Female contact incorporates a solder barrier to prevent solder running into the contact mating area

• Larger solder contacts for easier termination

• Optional connection to easily join pin1 to chassis ground

• D-style housing provides installation compatibility with industry standard D mounting dimensions
