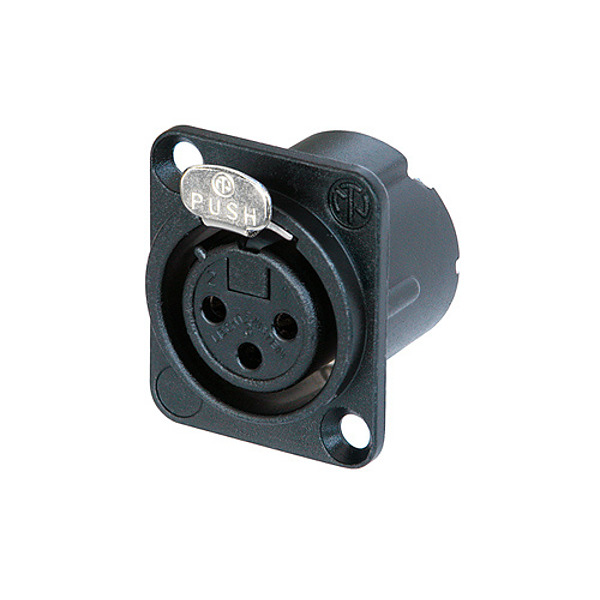

3pin Female Chassis Panel Mount

Product Code: NEUTRIK NC3FD-LX-B

Condition: New product

Available From

PAV – Sales and Install	Bayswater	9378 0888	www.pav.com.au/shop
Stage & Studio Productions	East Vic Park	6161 9704	www.stageandstudio.com.au
Advanced Production Engineering	Claremont	0487 465 597	www.apengineering.com.au
Mega Music Myaree	Myaree	9330 2777	www.megamusiconline.com.au
3 Monkeys Audiovisual	West Perth	9228 1681	www.3monkeysav.com
Omega Technical Services	Rivervale	0439 889 177	www.omegatech.com.au

More info

3 pole female receptacle, solder cups, black metal housing, gold contacts.

The DLX series features a compact all metal housing with an ingenious duplex ground contact, which offers excellent RF protection and shielding.

It is the ideal match for mating with Neutrik's EMC XLR cable connector.

Features

• All metal housing offers best overall RF protection and electromagnetic shielding

• Duplex ground contact for excellent contact integrity between chassis and cable connector

• Unique cage type female contact on 3 pole version increases conductivity and reduces wear on the mated male contact

• Female contact incorporates a solder barrier to prevent solder running into the contact mating area

• Larger solder contacts for easier termination

• Optional connection to easily join pin1 to chassis ground

• D-style housing provides installation compatibility with industry standard D mounting dimensions
