3pin Female Chassis Panel Mount - No Latch View larger

3pin Female Chassis Panel Mount - No Latch


New product

3pin Female Chassis Panel Mount - No Latch

More details

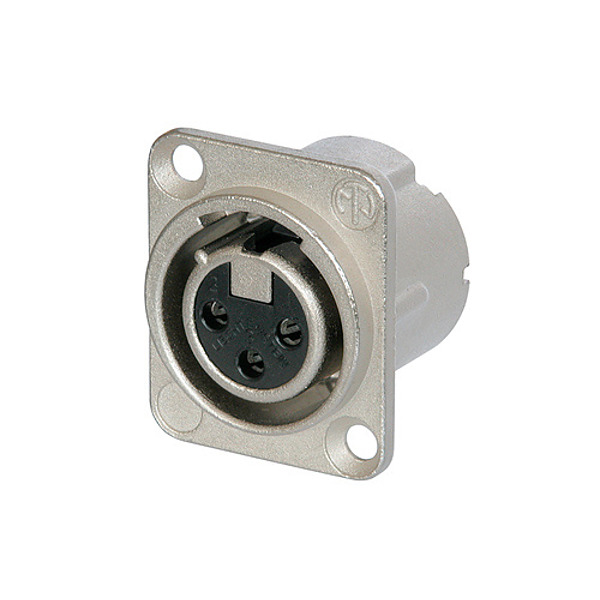

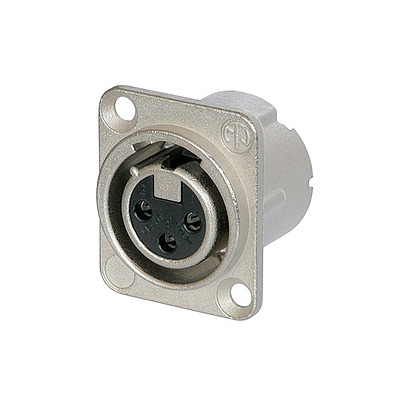

3 pole female receptacle, solder cups, Nickel housing, silver contacts, retention spring instead of latch.

The DLX series features a compact all metal housing with an ingenious duplex ground contact, which offers excellent RF protection and shielding.

It is the ideal match for mating with Neutrik's EMC XLR cable connector.


• All metal housing offers best overall RF protection and electromagnetic shielding

• Duplex ground contact for excellent contact integrity between chassis and cable connector

• Unique cage type female contact on 3 pole version increases conductivity and reduces wear on the mated male contact

• Female contact incorporates a solder barrier to prevent solder running into the contact mating area

• Larger solder contacts for easier termination

• Optional connection to easily join pin1 to chassis ground

• D-style housing provides installation compatibility with industry standard D mounting dimensions
